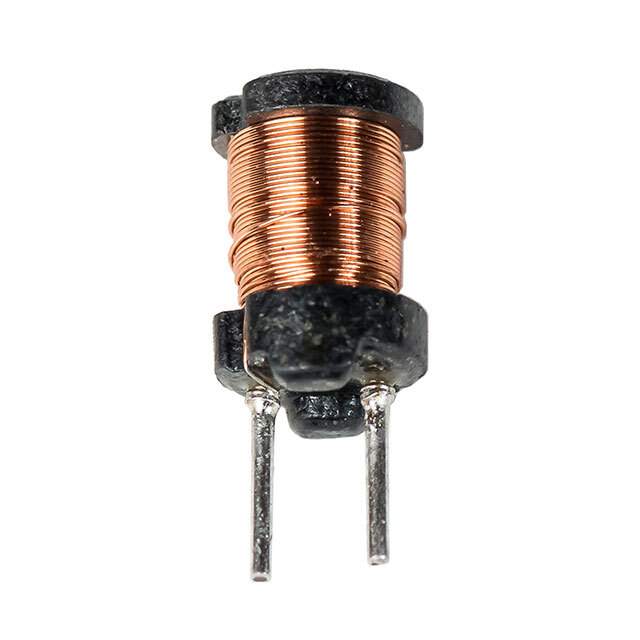

Same model may have multiple batches, images only for reference.

SBCP-47HY2R2B

Name: SBCP-47HY2R2B
Brand: Kemet
SKU: 1272816
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SBCP-47HY2R2B
Manufacturer	Kemet
Catalog	Fixed Inductors
Datasheet	SBCP-47HY2R2B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SBCP
Package	Bulk
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	2.6 A
Current - Saturation (Isat)	3.2A
Shielding	Unshielded
DC Resistance (DCR)	29mOhm Max
Temperature Range - Operating	-20°C ~ 105°C
Inductance Frequency - Test	10 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.295" (7.50mm)
Base Product Number	SBCP-47HY
Other Names	SBCP-47HY2R2B,UPIO47HY2R2B00,399-18985
Standard Package	6,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272816-SBCP-47HY2R2B
Ultra Librarian 3D Model	Ultra Librarian SBCP-47HY2R2B CAD Model

Alternative Products

Description

The KEMET SBCP-47HY2R2B is a high-quality inductor that is designed to provide reliable performance.

Manufacturer: KEMET
Type: drum core, wirewound
Shielding: unshielded
Inductance: 2.2 μH
Height: 0.295" (7.50mm)
Standard Package: 6,000
Current Rating: 2.6 A
DC Resistance (DCR): 29mOhm max
