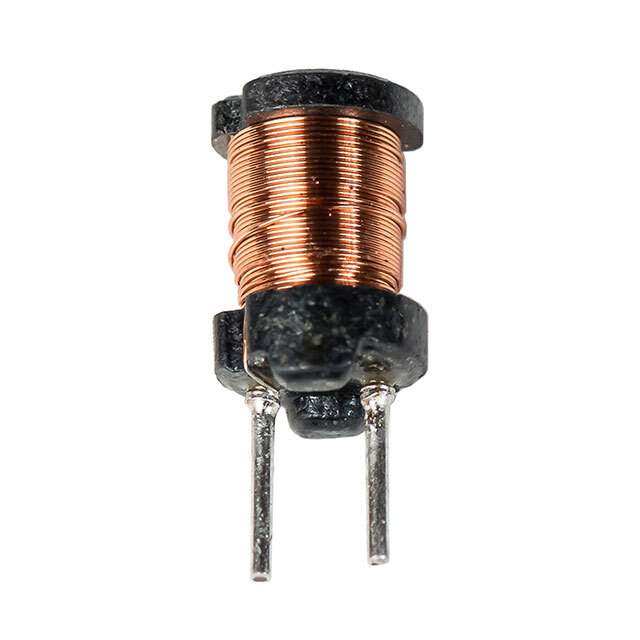

Same model may have multiple batches, images only for reference.

SBCP-14HY221B

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SBCP-14HY221B
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SBCP
Package	Bulk
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±10%
Current Rating (Amps)	1.05 A
Current - Saturation (Isat)	2.2A
Shielding	Unshielded
DC Resistance (DCR)	310mOhm Max
Temperature Range - Operating	-20°C ~ 105°C
Inductance Frequency - Test	10 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Dimension	0.472" Dia (12.00mm)
Height - Seated (Max)	0.591" (15.00mm)
Base Product Number	SBCP-14HY
Other Names	399-18979,SBCP-14HY221B,UPIO14HY221B00
Standard Package	1,500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272811-SBCP-14HY221B
Ultra Librarian 3D Model	Ultra Librarian SBCP-14HY221B CAD Model

Alternative Products

Description

The SBCP-14HY221B is a fixed inductor with an inductance of 220 µH and a tolerance of ±10%.

Manufacturer: KEMET
Inductance: 220 µH
Tolerance: ±10%
Type: drum core, wirewound
Shielding: unshielded
Height: 0.591 inches
Diameter: 0.472 inches
Core Material: ferrite
DC Resistance: 310mOhm max
Series: SBCP
Temperature Range: -20°C to 105°C
Mounting: through-hole mountable
Package/Case: radial, vertical cylinder (open)
Current Rating: 1.05 A
Inductance Frequency: 10 kHz
