Same model may have multiple batches, images only for reference.

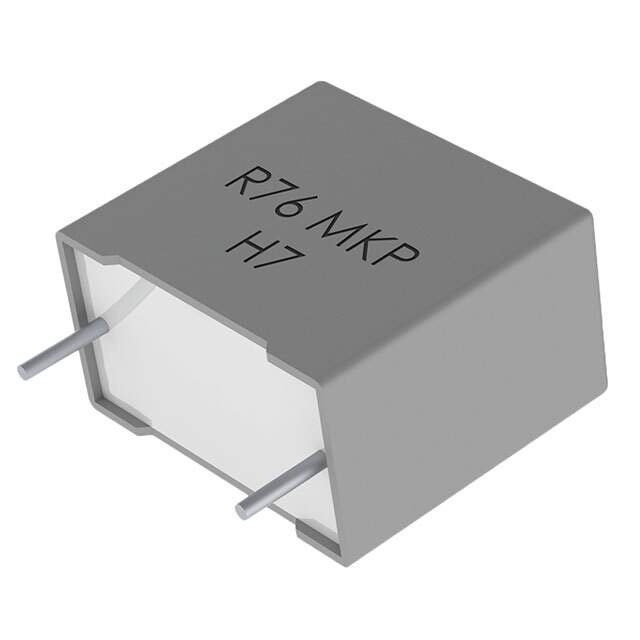

R76PW410050HLJ Real Image
Same model may have multiple batches, images only for reference.

R76PW410050HLJ

Part No R76PW410050HLJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 5% 630VDC RADIAL / 1 µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R76
Package Tray
Capacitance 1 µF
Tolerance ±5%
Voltage Rating - AC 400V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3 mOhms
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.634" L x 0.945" W (41.50mm x 24.00mm)
Height - Seated (Max) 0.594" (15.10mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings AEC-Q200
Base Product Number R76PW
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Other Names 76PW410050HLJ,399-R76PW410050HLJ
Standard Package 108
Win Source Part Number 1159575-R76PW410050HLJ
Ultra Librarian 3D Model Ultra Librarian R76PW410050HLJ CAD Model

Description

The R76 series capacitor is a film capacitor designed for automotive, high frequency, switching, and high pulse, DV/DT applications and manufactured by KEMET.

  • Capacitance: 1μF
  • Tolerance: ±5%
  • Voltage Rating: 400V (AC), 630V (DC)
  • Package: Tray
  • Termination: PC Pins
  • Height: 0.594" (15.10mm)
  • Lead Spacing: 1.476" (37.50mm)
  • ESR: 3 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting: Through Hole
  • Package/Case: Radial
  • Temperature Range: -55°C to 125°C
  • MSL: Not Applicable
  • REACH: REACH Unaffected
  • HTSUS: 8532.25.0020
  • Base Product Number: R76PW
