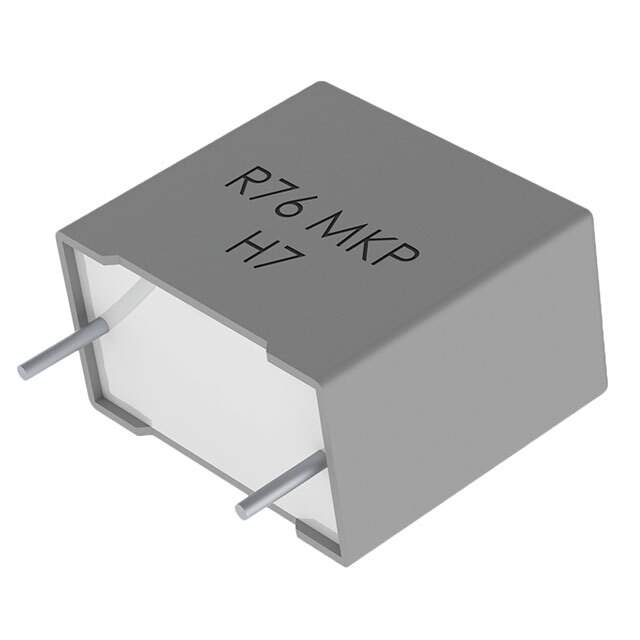

R76PW410050H3J Real Image
Same model may have multiple batches, images only for reference.

R76PW410050H3J

Part No R76PW410050H3J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 5% 630VDC RADIAL / 1 µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R76
Package Tray
Capacitance 1 µF
Tolerance ±5%
Voltage Rating - AC 400V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3 mOhms
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.634" L x 0.630" W (41.50mm x 16.00mm)
Height - Seated (Max) 1.126" (28.60mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings AEC-Q200
Base Product Number R76PW
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Other Names 399-R76PW410050H3J,76PW410050H3J
Standard Package 108
Win Source Part Number 1003577-R76PW410050H3J
Ultra Librarian 3D Model Ultra Librarian R76PW410050H3J CAD Model

Description

The KEMET R76PW410050H3J is a film capacitor in the category of capacitors.

  • Manufacturer:KEMET
  • Category: Capacitors - Film Capacitors
  • Capacitance: 1μF
  • Tolerance: ±5%
  • Applications: Automotive, High Frequency, Switching, High Pulse DV/DT
  • Package: Radial
