R75PF1470AA01J Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

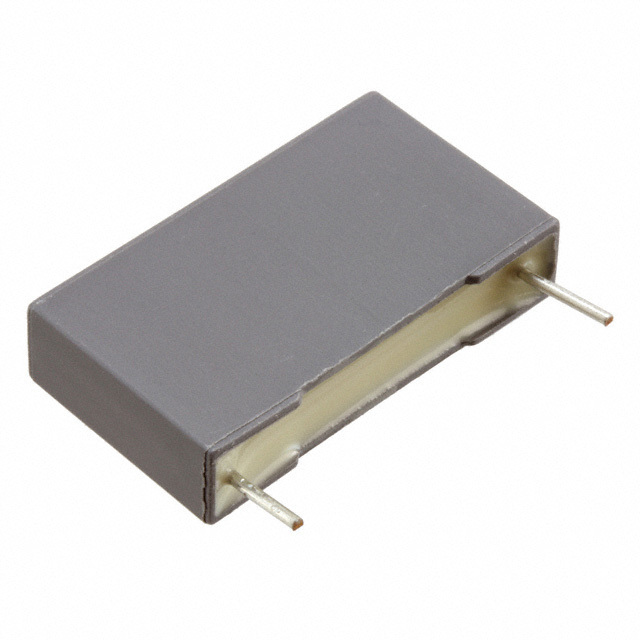

R75PF1470AA01J

Part No R75PF1470AA01J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 4700PF 5% 630VDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 4700 pF
Tolerance ±5%
Voltage Rating - AC 250V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max) 0.358" (9.10mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings AEC-Q200
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1522169-R75PF1470AA01J
Ultra Librarian 3D Model Ultra Librarian R75PF1470AA01J CAD Model
