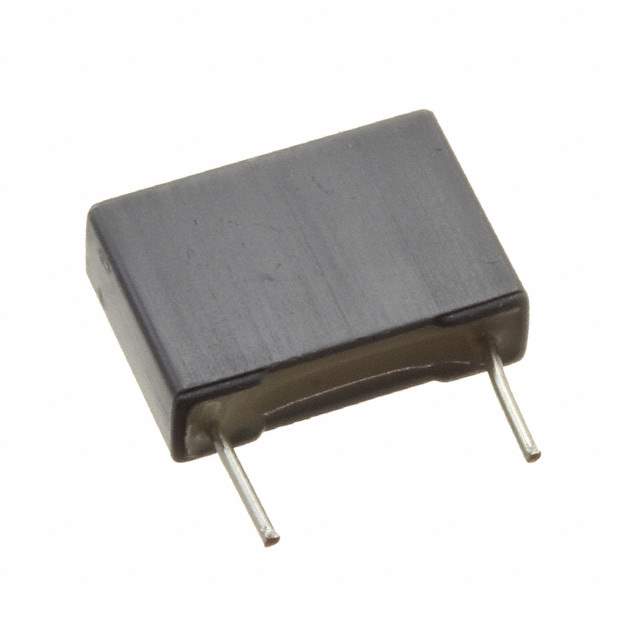

Same model may have multiple batches, images only for reference.

R60PF2100AA30J

Name: R60PF2100AA30J
Brand: Kemet
SKU: 1000557
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	R60PF2100AA30J
Manufacturer	Kemet
Catalog	Film Capacitors
Description	CAP FILM 10000PF 5% 630VDC RAD / 10000 pF Film Capacitor 220V 630V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Film Capacitors
Mfr	KEMET
Series	R60
Package	Bulk
Capacitance	10000 pF
Tolerance	±5%
Voltage Rating - AC	220V
Voltage Rating - DC	630V
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized
Temperature Range - Operating	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Dimension	0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max)	0.358" (9.10mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	Automotive
Ratings	AEC-Q200
Base Product Number	R60PF
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.25.0010
Other Names	60PF2100AA30J,399-19796
Standard Package	2,000
Win Source Part Number	1000557-R60PF2100AA30J
Ultra Librarian 3D Model	Ultra Librarian R60PF2100AA30J CAD Model

Description

The R60PF2100AA30J is a film capacitor from KEMET with a capacitance of 10000 pF and a tolerance of ±5%.

Application: Automotive
Voltage Rating (AC): 220V
Voltage Rating (DC): 630V
Dielectric Material: Polyester, Polyethylene Terephthalate (PET), Metallized
Mounting Type: Through Hole
Height: 0.358" (9.10mm)
Lead Spacing: 0.394" (10.00mm)
ROHS3 Compliant: Yes
ECCN: EAR99
