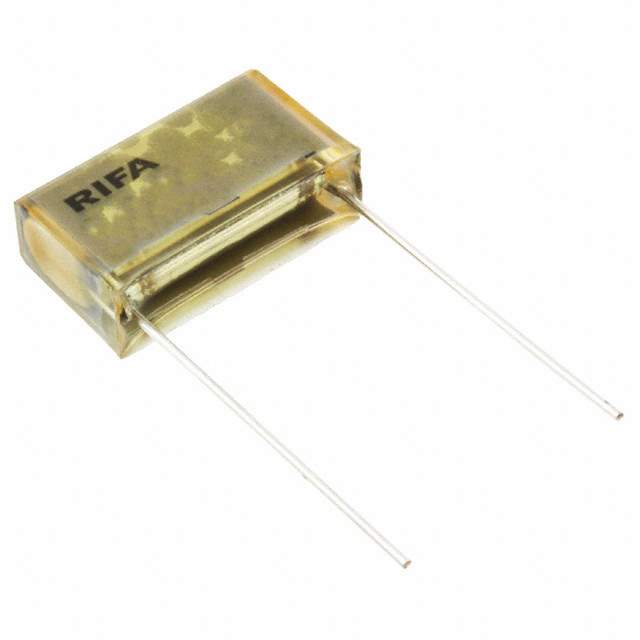

The PMR209MC6100M100R30 is a Class X2 Metallized Polypropylene Film Capacitor manufactured by Kemet. These capacitors are specifically designed for interference suppression and safety applications in AC power circuits.

Applications

• AC Power Line Filtering
• Interference Suppression
• Across-the-Line Applications
• Power Supplies
• Consumer Electronics

Features

• Class X2 Safety Capacitor
• Metallized Polypropylene Film Dielectric
• Self-Healing Properties
• Flame Retardant Epoxy Resin Coating
• High Stability and Reliability

Benefits

• Protection against Voltage Surges
• Suppression of Electrical Noise
• Compliance with Safety Standards
• Long Service Life
• Safe Operation in Harsh Environments

The PMR209MC6100M100R30 is a Class X2 safety capacitor, meaning it is designed to be connected across the AC power line to suppress interference and protect equipment from voltage surges. The metallized polypropylene film dielectric provides excellent electrical characteristics, including high insulation resistance and low dissipation factor. The self-healing properties of the capacitor allow it to withstand momentary voltage overstresses without permanent damage.

The flame retardant epoxy resin coating provides additional protection against fire hazards. These capacitors are designed to meet stringent safety standards, such as ENEC, UL, and CSA. The '6100M' in the part number likely indicates a capacitance value of 0.1 μF (microfarads), with a tolerance of ±20%. The '100R30' could refer to the lead spacing and packaging details; however, the datasheet must be consulted for definitive confirmation.

Specific technical specifications, such as voltage rating, capacitance tolerance, operating temperature range, and dimensions, can be found in the Kemet datasheet for the PMR209MC6100M100R30. It is crucial to consult the datasheet to ensure that the capacitor meets the requirements of the specific application and to ensure proper installation and operation.
