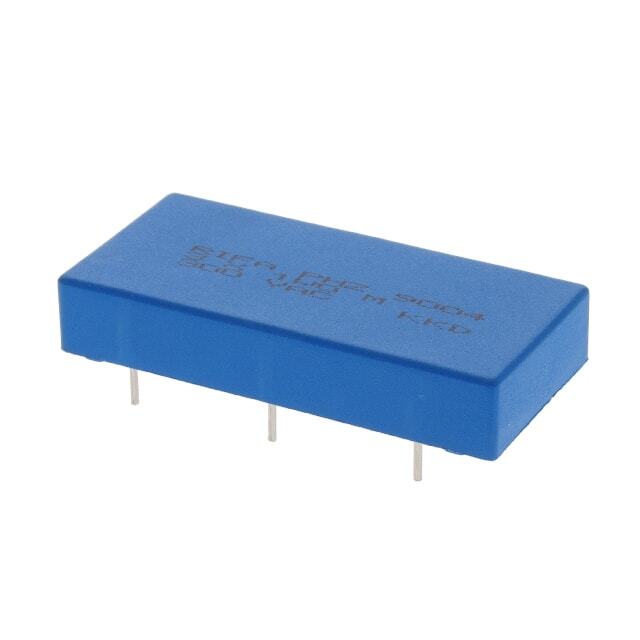

PHZ9004EF7100MR06L2 Kemet
Same model may have multiple batches, images only for reference.

PHZ9004EF7100MR06L2

Part No PHZ9004EF7100MR06L2
Manufacturer Kemet
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHZ9004
Package Tray
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - AC 300V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial - 6 Leads
Dimension 2.520" L x 1.181" W (64.00mm x 30.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression; 3 Phase
Ratings X2
Base Product Number PHZ9004
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1315468-PHZ9004EF7100MR06L2
Ultra Librarian 3D Model Ultra Librarian PHZ9004EF7100MR06L2 CAD Model

Description

The PHZ9004EF7100MR06L2 is a film capacitor designed by KEMET.

  • Series: PHZ9004
  • Capacitance: 1 µF with a tolerance of ±20%
  • Design: EMI, RFI suppression and 3 phase applications
  • Voltage Rating for AC: 300V
  • Package: Radial with 6 leads
  • Height: 0.453" (11.50mm)
  • Lead Spacing: 1.083" (27.50mm)
  • Temperature Range: -40°C to 110°C
  • Dielectric Material: Polypropylene (PP), metallized
  • REACH: Unaffected
  • ECCN: EAR99
