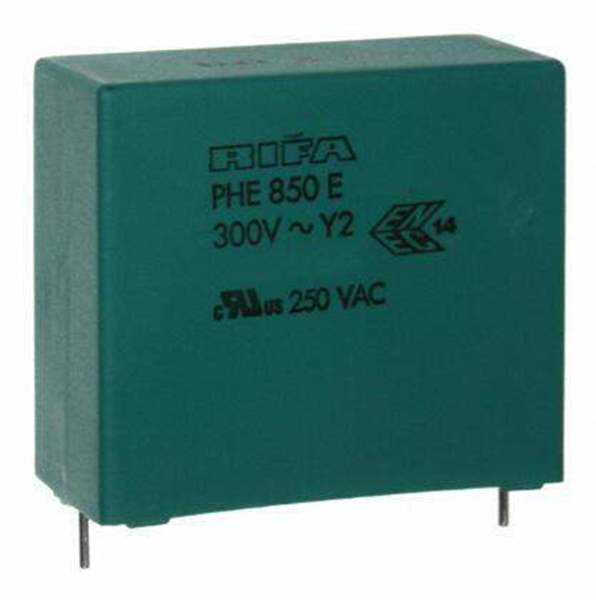

PHE850ER7100MR03R06L2

Part No PHE850ER7100MR03R06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 20% 1.25KVDC RADIAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Packaging  Bulk
Part Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - AC 300V
Operating Temperature -55°C ~ 110°C
Mounting Type Through Hole
Size / Dimension 1.614" L x 0.748" W (41.00mm x 19.00mm)
Height - Seated (Max) 1.417" (36.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Win Source Part Number WS1306200-PHE850ER7100MR03R06L2
Ultra Librarian 3D Model Ultra Librarian PHE850ER7100MR03R06L2 CAD Model

Description

1 µF Film Capacitor 300V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
