Same model may have multiple batches, images only for reference.

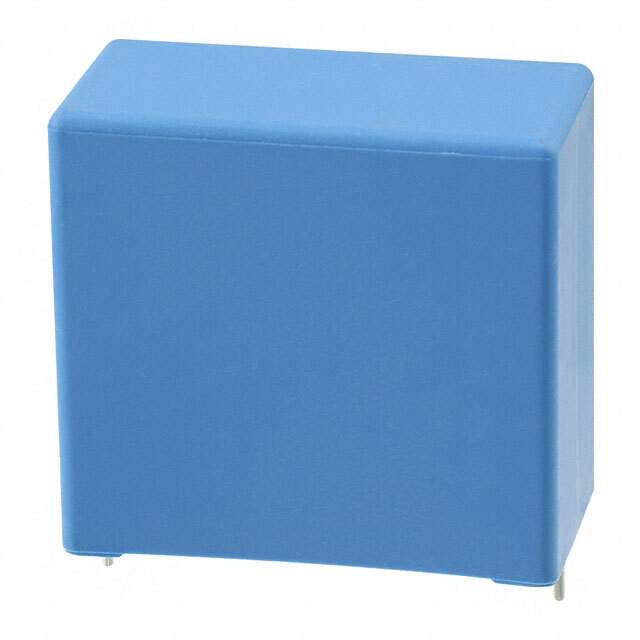

PHE845VW7100MR06 Real Image
Same model may have multiple batches, images only for reference.

PHE845VW7100MR06

Part No PHE845VW7100MR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 20% 1.5KVDC RADIAL
Datasheet
PHE845VW7100MR06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±20%
Voltage Rating - AC 760V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.614" L x 0.827" W (41.00mm x 21.00mm)
Height - Seated (Max) 1.496" (38.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications EMI, RFI Suppression
Features X1 Safety Rated
Win Source Part Number 209928-PHE845VW7100MR06
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE845VW7100MR06 CAD Model

Description

The Kemet PHE845VW7100MR06 is an X1 safety rated capacitor with a capacitance of 1μF and a voltage rating of 760V AC and 1500V DC.

  • Safety Rating: X1
  • Capacitance: 1μF
  • Voltage Rating (AC): 760V AC
  • Voltage Rating (DC): 1500V DC
  • Application: EMI and RFI suppression
  • Dielectric Material: Polypropylene (PP), metallized
  • Lead Spacing: 1.476" (37.50mm)
  • Mounting: Through hole
  • Tolerance: ±20%
  • Temperature Range: -40°C to 105°C
  • Packaging: Bulk
  • Height: 1.496" (38.00mm)
