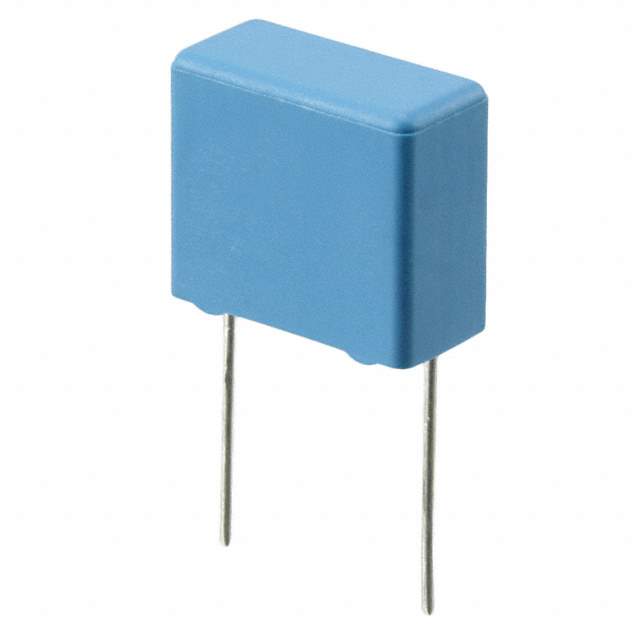

PHE840MX6330MB11R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MX6330MB11R17

Part No PHE840MX6330MB11R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.33UF 20% 760VDC RAD
Datasheet
PHE840MX6330MB11R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.33μF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max) 0.630" (16.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 042106-PHE840MX6330MB11R17
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE840MX6330MB11R17 CAD Model

Description

The PHE840MX6330MB11R17 from Kemet is a capacitor with a capacitance of 0.33μF and a tolerance of ±20%.

  • Capacitance: 0.33μF
  • Tolerance: ±20%
  • Voltage Rating: 275V (AC) and 760V (DC)
  • Application: designed for use in EMI and RFI suppression applications
  • Package/Case: through hole
  • Height (Seated): 0.630" (16.00mm)
  • Safety Rating: X2 safety rating
  • Lead Spacing: 0.591" (15.00mm)
  • Dielectric Material: Polypropylene (PP), Metallized
  • Application: suitable for use in various electronic applications.
