Same model may have multiple batches, images only for reference.

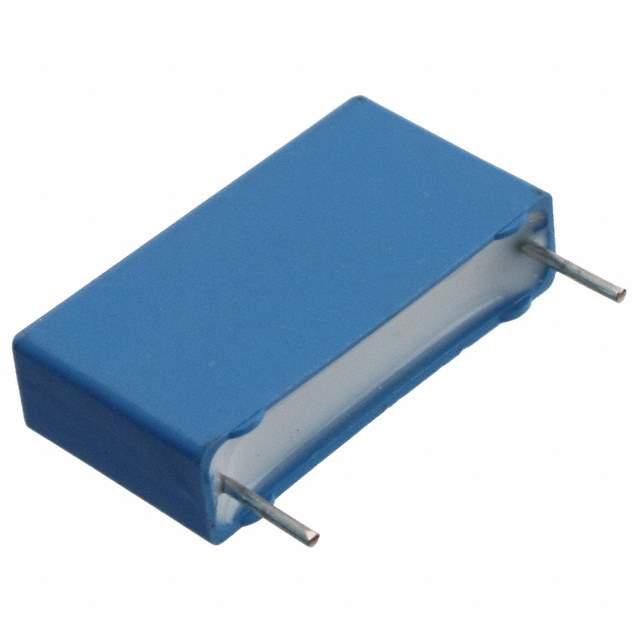

PHE840MD6220KD13R06L2 Real Image
Same model may have multiple batches, images only for reference.

PHE840MD6220KD13R06L2

Part No PHE840MD6220KD13R06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 760VDC RAD
Datasheet
PHE840MD6220KD13R06L2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.22μF
Tolerance ±10%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 1.024" L x 0.256" W (26.00mm x 6.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209915-PHE840MD6220KD13R06L2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE840MD6220KD13R06L2 CAD Model

Description

The Kemet PHE840MD6220KD13R06L2 capacitor is a high-performance film capacitor that is designed to provide reliable and safe operation in a wide range of electronic applications.

  • Voltage Rating: rated for 275V AC and 760V DC
  • Temperature Range: rated for a temperature range of -55°C to 105°C
  • Popularity: has a medium popularity in the market
  • Supply and Demand: balance in supply and demand status
  • Safety Rating: X2 safety rating ensures safety in use
  • Mounting: through-hole mounting makes it easy to install.
