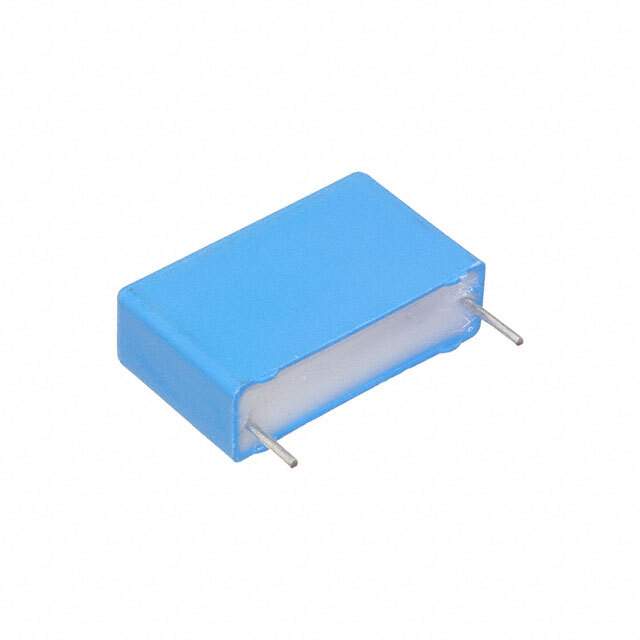

PHE840EA5470MA03R17 Real Image1 PHE840EA5470MA03R17 Real Image2
Same model may have multiple batches, images only for reference.
PHE840EA5470MA03R17 Real Image1 PHE840EA5470MA03R17 Real Image2
PHE840EA5470MA03R17 Real Image1 PHE840EA5470MA03R17 Real Image2
Same model may have multiple batches, images only for reference.

PHE840EA5470MA03R17

Part No PHE840EA5470MA03R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.047UF 20% 760VDC RAD / 0.047 µF Film Capacitor 300V 760V Polypropylene (PP), Metallized Radial
Datasheet
PHE840EA5470MA03R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Kemet
Series PHE840E
Package Bulk
Capacitance 0.047 µF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications EMI, RFI Suppression
Ratings X2
Features -
Base Product Number PHE840
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Standard Package 800 pcs
Win Source Part Number 1383152-PHE840EA5470MA03R17
Ultra Librarian 3D Model Ultra Librarian PHE840EA5470MA03R17 CAD Model

Description

The PHE840EA5470MA03R17 is a film capacitor designed for EMI and RFI suppression applications. It has a capacitance of 0.047 μF with a tolerance of ±20%.

  • Manufacturer: Kemet
  • Series: PHE840E
  • Capacitance: 0.047 μF
  • Tolerance: ±20%
  • Voltage Rating (AC): 300V
  • Voltage Rating (DC): 760V
  • Termination Style: PC Pins
  • Size: 0.512" L x 0.197" W (13.00mm x 5.00mm)
  • Seated Height: 0.433" (11.00mm)
  • Mounting Type: Through Hole
  • Dielectric Material: Polypropylene (PP) Metallized
  • Operating Temperature: -55°C to 105°C
  • Package: Bulk
  • Standard Package: 800 pieces
