Same model may have multiple batches, images only for reference.

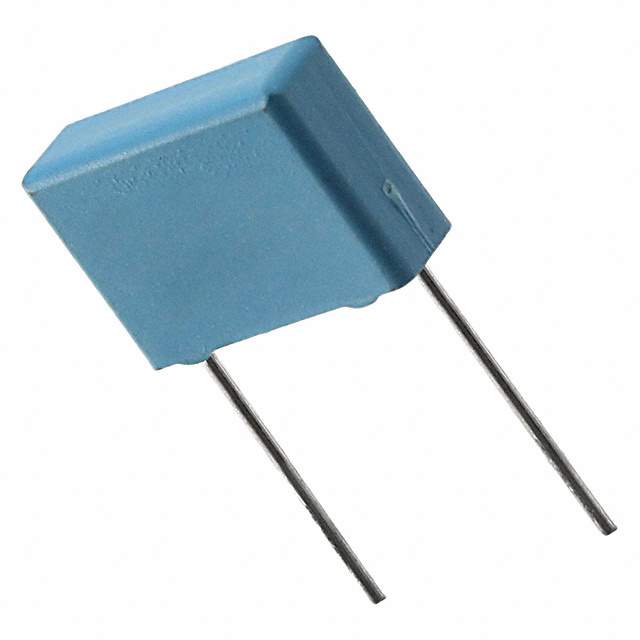

PHE820MB5330MR17 Real Image
Same model may have multiple batches, images only for reference.

PHE820MB5330MR17

Part No PHE820MB5330MR17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.033UF 20% 275VAC RAD
Datasheet
PHE820MB5330MR17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.033μF
Tolerance ±20%
Voltage Rating - AC 275V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Dimension 0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209907-PHE820MB5330MR17
Popularity Medium
Supply and Demand Status Balance
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian PHE820MB5330MR17 CAD Model

Description

The PHE820MB5330MR17 is a polyester, metallized film capacitor from KEMET.

  • Safety Rating: It is X2 safety rated
  • Voltage Rating: 275V AC
  • Capacitance: 0.033μF
  • Tolerance: ±20%
  • Mounting Type: It is a through-hole mounting type capacitor
  • Packaging: packaged in bulk
  • Height (Seated): The height of the capacitor when seated is 0.492" (12.50mm)
  • Lead Spacing: The lead spacing is 0.591" (15.00mm)
  • Operating Temperature: The operating temperature range is from -40°C to 100°C
  • Supply and Demand: The supply and demand status of the capacitor is balanced
  • Package Quantity: It comes in a package of 800.
