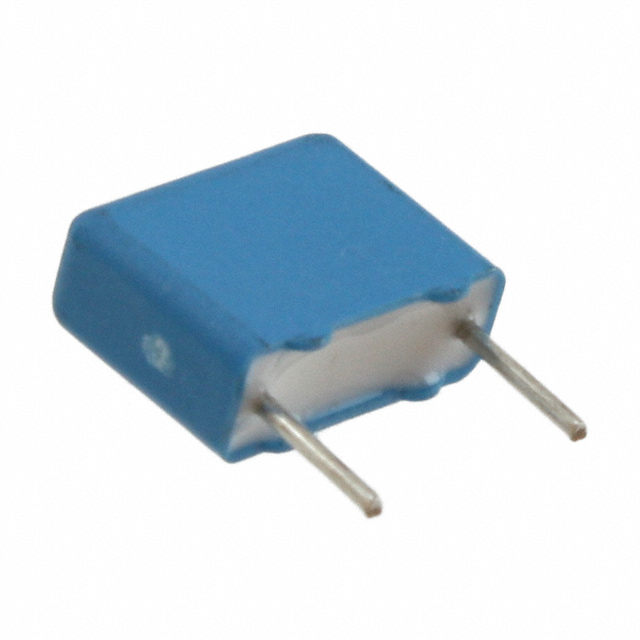

PHE450PB5100JR06 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PHE450PB5100JR06

Part No PHE450PB5100JR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 1KVDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 10000 pF
Tolerance ±5%
Voltage Rating - AC 600V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1521601-PHE450PB5100JR06
Ultra Librarian 3D Model Ultra Librarian PHE450PB5100JR06 CAD Model
