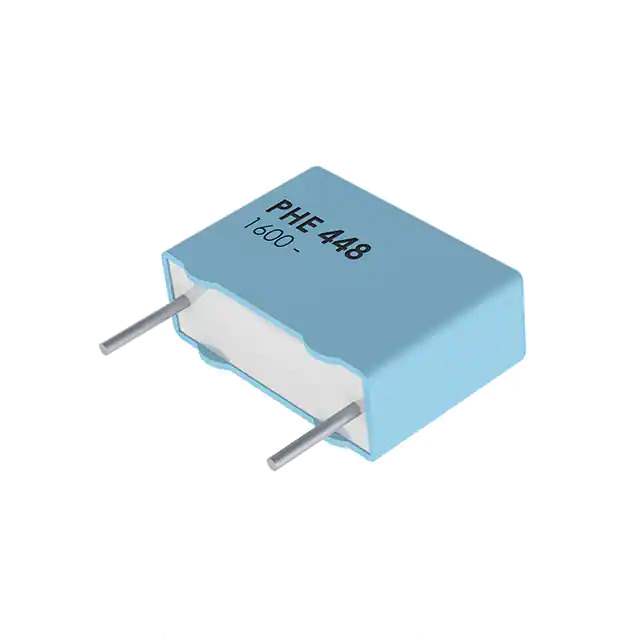

Same model may have multiple batches, images only for reference.

PHE448RB4470JR06

Name: PHE448RB4470JR06
Brand: Kemet
SKU: 273965
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PHE448RB4470JR06
Manufacturer	Kemet
Catalog	Film Capacitors
Description	CAP FILM 4700PF 5% 1.6KVDC RAD
Datasheet	PHE448RB4470JR06 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Film Capacitors
Mfr	KEMET
Series	PHE448
Package	Box
Product Status	Active
Capacitance	4700 pF
Tolerance	±5%
Voltage Rating - AC	650V
Voltage Rating - DC	1600V (1.6kV)
Dielectric Material	Polypropylene (PP)
Temperature Range - Operating	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max)	0.492" (12.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Base Product Number	PHE448
Standard Package	1,000 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.25.0030
Win Source Part Number	273965-PHE448RB4470JR06
Ultra Librarian 3D Model	Ultra Librarian PHE448RB4470JR06 CAD Model

Description

The PHE448RB4470JR06 is a film capacitor from KEMET.

Series: PHE448
Termination: PC Pins
Package: Box
Voltage Rating (AC): 650V
Voltage Rating (DC): 1600V (1.6kV)
Size: 0.709" L x 0.256" W (18.00mm x 6.50mm)
Application: High-Frequency and Switching Applications, High Pulse and DV/DT Applications
Height: 0.492" (12.50mm)
Standard Package: 1,000 pieces
Capacitance: 4700 pF
Tolerance: ±5%
Package/Case: Radial
Mounting: Through Hole
Operating Temperature Range: -55°C to 105°C
Win Source Part Number: 273965-PHE448RB4470JR06
HTSUS Code: 8532.25.0030
ECCN: EAR99
REACH Status: Unaffected
Fake Product Threat: 30%
