Same model may have multiple batches, images only for reference.

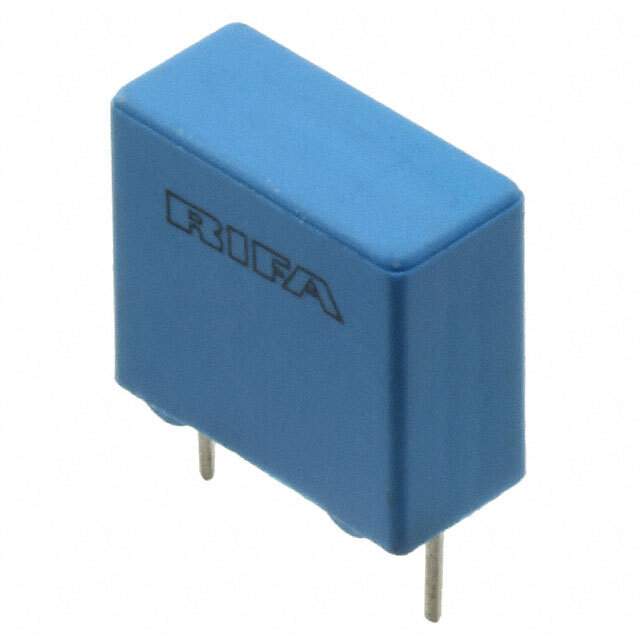

PHE426HK4100JR05 Real Image
Same model may have multiple batches, images only for reference.

PHE426HK4100JR05

Part No PHE426HK4100JR05
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1000PF 5% 250VDC RADIAL / 1000 pF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHE426
Package Box
Capacitance 1000 pF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE426
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-PHE426HK4100JR05,F426KG102J250C
Standard Package 1,000
Win Source Part Number 1173785-PHE426HK4100JR05
Ultra Librarian 3D Model Ultra Librarian PHE426HK4100JR05 CAD Model

Description

The Kemet PHE426 Film Capacitor is a high-quality capacitor that is ideal for use in DC Link, DC Filtering, High Frequency, Switching, and High Pulse, DV/DT applications.

  • Applications: DC Link, DC Filtering, High Frequency, Switching, and High Pulse, DV/DT
  • Capacitance: 1000 pF
  • Voltage Rating: 250V
  • Tolerance: ±5%
  • Dielectric Material: Polypropylene (PP), Metallized
  • Win Source Part Number: 1173785-PHE426HK4100JR05
  • Category: Film Capacitors
  • Series: PHE426
  • Mounting Type: Through-Hole
  • Package/Case: Radial
