Same model may have multiple batches, images only for reference.

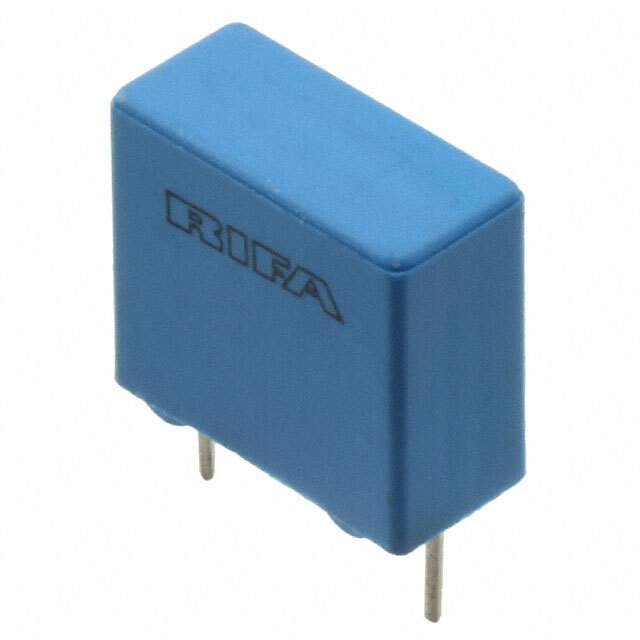

PHE426HF7220JR06L2 Real Image
Same model may have multiple batches, images only for reference.

PHE426HF7220JR06L2

Part No PHE426HF7220JR06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 2.2UF 5% 250VDC RAD / 2.2 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
Datasheet
PHE426HF7220JR06L2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHE426
Package Tray
Capacitance 2.2 µF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.240" L x 0.413" W (31.50mm x 10.50mm)
Height - Seated (Max) 0.807" (20.50mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE426
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names F426FE225J250C
Standard Package 216
Win Source Part Number 1197232-PHE426HF7220JR06L2
Ultra Librarian 3D Model Ultra Librarian PHE426HF7220JR06L2 CAD Model

Description

The Kemet 1197232-PHE426HF7220JR06L2 is a film capacitor that is used in various applications.

  • Capacitance: 2.2 µF
  • Voltage Rating: 250V DC
  • Temperature Range: -55°C to 105°C
  • Features: High frequency, switching, and high pulse, DV/DT
  • Package Size: Radial
  • Lead Spacing: 1.083" (27.50mm)
