Same model may have multiple batches, images only for reference.

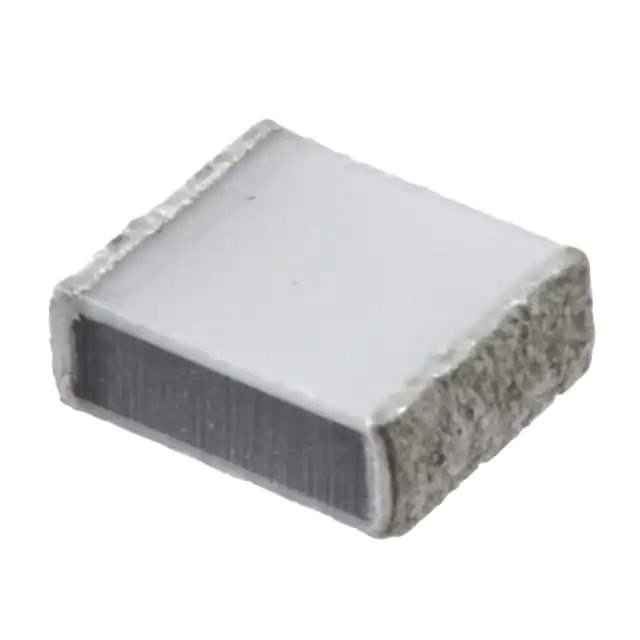

LDEEC2100KA5N00 Real Image
Same model may have multiple batches, images only for reference.

LDEEC2100KA5N00

Part No LDEEC2100KA5N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 10000PF 10% 100VDC 1812
Datasheet
LDEEC2100KA5N00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series LDE
Package Tape & Reel
Product Status Active
Capacitance 10000 pF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Size / Dimension 0.185" L x 0.130" W (4.70mm x 3.30mm)
Height - Seated (Max) 0.067" (1.70mm)
Termination Solder Pads
Applications Automotive
Ratings AEC-Q200
Features High Temperature
Base Product Number LDEEC
Standard Package 4,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 746741-LDEEC2100KA5N00
Ultra Librarian 3D Model Ultra Librarian LDEEC2100KA5N00 CAD Model

Description

The 746741-LDEEC2100KA5N00 is a film capacitor from the LDE series.

  • Series: LDE
  • Application: Automotive
  • Features: High-Temperature Rating, Solder Pads
  • Package: Tape and Reel
  • Voltage Rating (AC): 63V
  • Voltage Rating (DC): 100V
  • Size: 0.185" L x 0.130" W (4.70mm x 3.30mm)
  • Height: 0.067" (1.70mm)
  • Capacitance: 10000 pF
  • Tolerance: ±10%
  • AEC-Q200 Rated: Yes
  • Manufacturer: KEMET
  • Product Status: Active
