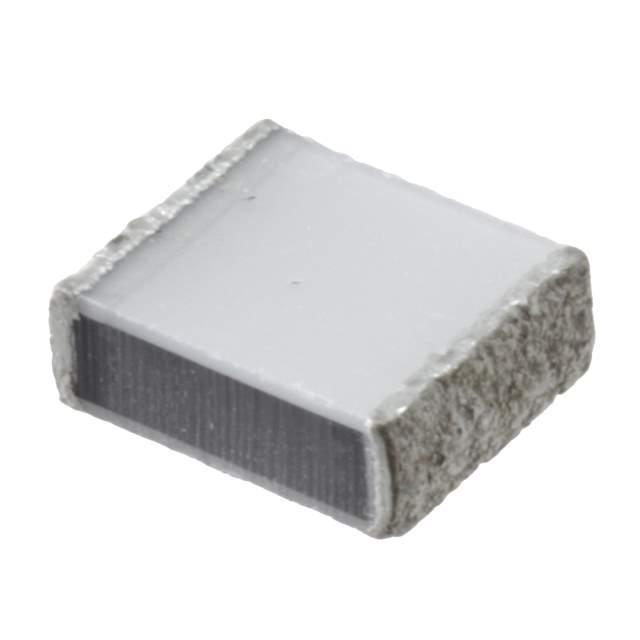

LDECC2100JA5N00 Real Image
Same model may have multiple batches, images only for reference.

LDECC2100JA5N00

Part No LDECC2100JA5N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 50VDC 1812 / 10000 pF Film Capacitor 40V 50V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 1812 (4532 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series LDE
Package Tape & Reel
Capacitance 10000 pF
Tolerance ±5%
Voltage Rating - AC 40V
Voltage Rating - DC 50V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Dimension 0.185" L x 0.130" W (4.70mm x 3.30mm)
Height - Seated (Max) 0.067" (1.70mm)
Termination Solder Pads
Applications Automotive
Ratings AEC-Q200
Features High Temperature
Base Product Number LDECC
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-18516-2,399-18516-1,DECC2100JA5N00,399-18516-6
Standard Package 4,000
Win Source Part Number 1056759-LDECC2100JA5N00
Ultra Librarian 3D Model Ultra Librarian LDECC2100JA5N00 CAD Model

Description

The KEMET LDECC2100JA5N00 is a high temperature film capacitor with a capacitance of 10000 pF and a tolerance of ±5%.

  • Manufactured by: MaxLinear, Inc. and has a Win Source Part Number of 802608-XR3088XED-F.
  • Packaged in: tape and reel and has a package/case size of 1812 (4532 Metric).
  • Voltage Rating: 40V (AC) and 50V (DC)
  • Designed for: automotive applications.
  • Height: 0.067” (1.70mm)
  • Mounted using: SMD (SMT) technology.
