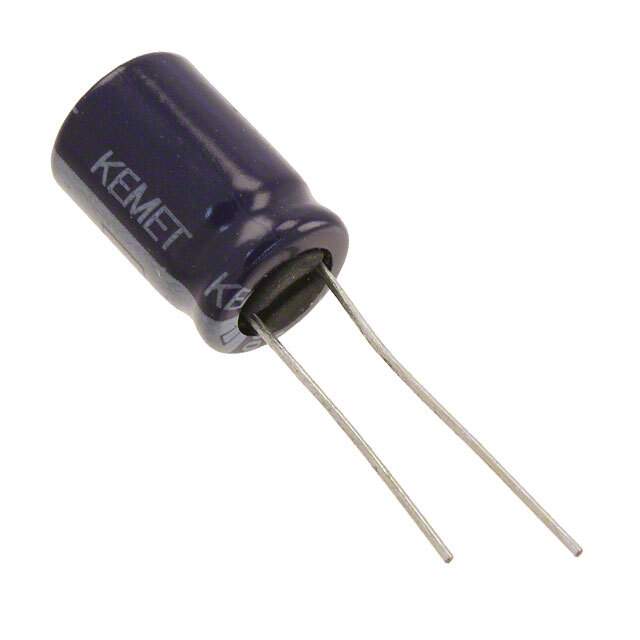

The ESK477M025AH1EA is an aluminum electrolytic capacitor manufactured by Kemet. Aluminum electrolytic capacitors are a type of polarized capacitor that uses an electrolyte to achieve a larger capacitance value than other types of capacitors, such as ceramic or film capacitors. This specific capacitor is designed for general-purpose applications requiring a moderate capacitance and voltage rating.

Applications

• Power Supply Filtering
• DC Link Capacitors
• Audio Coupling and Decoupling
• General Purpose Circuit Smoothing
• Timing Circuits

Features

• High Capacitance: 470uF (Microfarads)
• Voltage Rating: 25V (Volts)
• Aluminum Electrolytic Construction: Uses an aluminum electrolytic dielectric.
• Radial Lead Configuration: Features radial leads for through-hole mounting.
• Operating Temperature Range: Typically -40°C to +85°C (check datasheet for specifics)

Benefits

• Large Capacitance in a Small Package: Provides significant capacitance for filtering and energy storage.
• Cost-Effective: Aluminum electrolytic capacitors are generally cost-effective.
• Easy to Use: Radial lead configuration simplifies mounting on PCBs.
• Wide Availability: Aluminum electrolytic capacitors are readily available.
• Suitable for General Purpose Applications: Offers a good balance of performance and cost for a wide range of uses.

Additional Details

The ESK477M025AH1EA is a polarized capacitor, meaning it must be connected with the correct polarity in the circuit. The positive lead is typically longer and marked on the capacitor body. Connecting the capacitor with reverse polarity can damage the capacitor and the circuit. The equivalent series resistance (ESR) and ripple current rating are important parameters to consider, especially in power supply applications. The datasheet from Kemet provides detailed specifications, including ESR, ripple current rating, leakage current, and lifetime characteristics. Proper selection of the capacitor ensures reliable operation and longevity in the intended application. They are commonly used in power adapters, consumer electronics, and industrial equipment where bulk capacitance is needed for filtering or energy storage.
