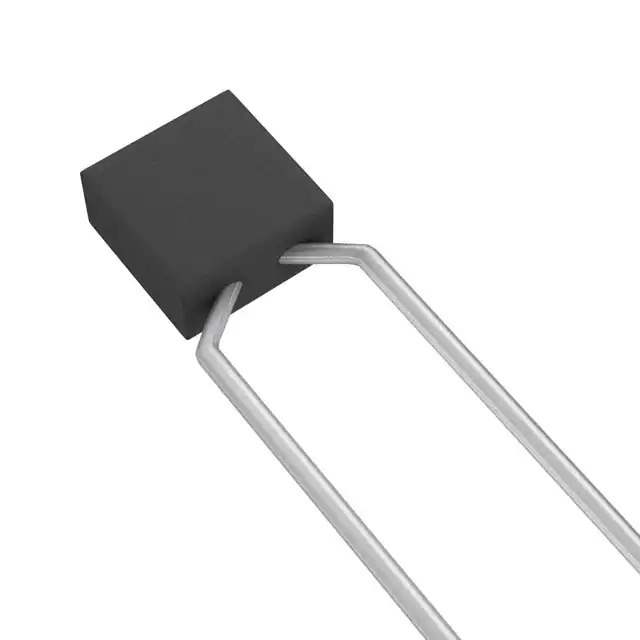

CK05BX331K Real Image
Same model may have multiple batches, images only for reference.

CK05BX331K

Part No CK05BX331K
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 330PF 200V 10% RADIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KEMET
Series Military, MIL-C-11015, CK05
Package Bag
Product Status Active
Capacitance 330 pF
Tolerance ±10%
Voltage - Rated 200V
Temperature Coefficient BX
Temperature Range - Operating -55°C ~ 125°C
Applications High Reliability
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.190" L x 0.090" W (4.83mm x 2.29mm)
Height - Seated (Max) 0.200" (5.08mm)
Lead Spacing 0.200" (5.08mm)
Lead Style Formed Leads
Base Product Number CK05BX
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
California Prop 65 Warning Information
Win Source Part Number 1328440-CK05BX331K
Ultra Librarian 3D Model Ultra Librarian CK05BX331K CAD Model

Description

The CK05BX331K is a ceramic capacitor from the Military, MIL-C-11015, CK05 series from KEMET.

  • Series: Military, MIL-C-11015, CK05
  • Capacitance: 330 pF
  • Tolerance: ±10%
  • Voltage: 200V
  • Temperature Range: -55°C to 125°C
  • Package: Radial
  • Leads: Formed
  • Size: 0.190 inches (4.83mm) L x 0.090 inches (2.29mm) W
  • Seated Height: 0.200 inches (5.08mm)
  • Status: Active
