Same model may have multiple batches, images only for reference.

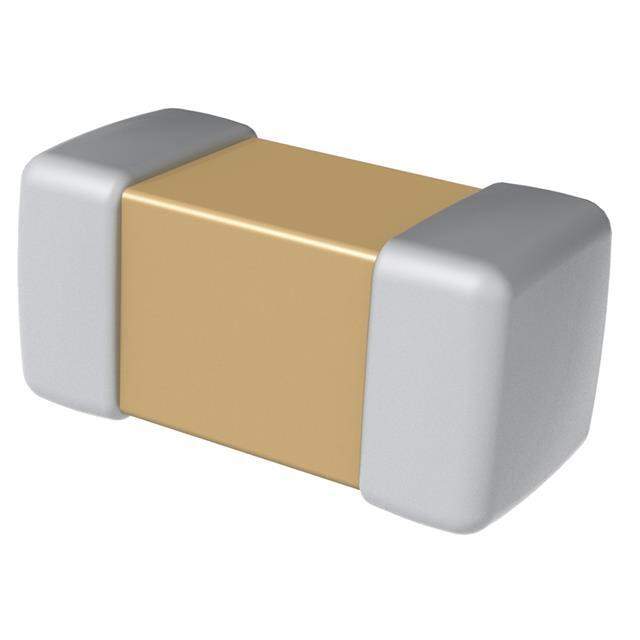

CBR02C159A3GAC Real Image
Same model may have multiple batches, images only for reference.

CBR02C159A3GAC

Part No CBR02C159A3GAC
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 1.5PF 25V NP0 0201 / Cap Ceramic 1.5pF 25V C0G 0.05pF Pad SMD 0201 125°C Low ESR Medical T/R
Datasheet
CBR02C159A3GAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series CBR
Packaging Reel package
Capacitance 1.5pF
Tolerance ±0.05pF
Voltage Rating DC 25V
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Surface Mount, MLCC
Package 0201 (0603 Metric)
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Thickness (Maximum) 0.013" (0.33mm)
Win Source Part Number 770845-CBR02C159A3GAC
Popularity Medium
Supply and Demand Status Limited
Family Name CBR02
Introduction Date October 20, 2011
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CBR02C159A3GAC CAD Model

Description

The Kemet CBR02C159A3GAC is a surface mount capacitor.

  • Capacitance: 1.5pF
  • Voltage Rating DC: 25V
  • Family: CBR02
  • Package: 0201 (0603 Metric)
  • Applications: RF, microwave, and high-frequency
  • Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
  • Thickness: 0.013" (0.33mm)
  • Features: High Q, low loss
  • Mounting: Surface mount
  • Supply and Demand Status: Limited
  • Country of Origin: Taiwan
  • Estimated EOL Date: 2028
