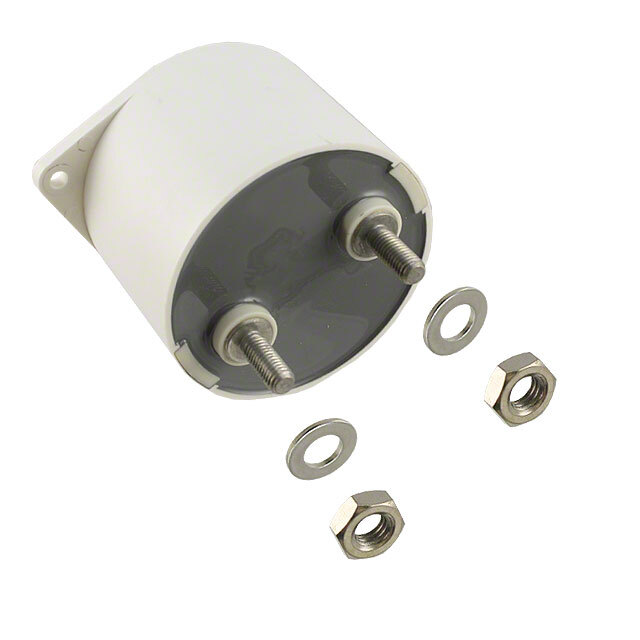

Same model may have multiple batches, images only for reference.
C4BSNBX4100ZEFJ Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

C4BSNBX4100ZEFJ

Part No C4BSNBX4100ZEFJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 5% 1KVDC SCREW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 1 µF
Tolerance ±5%
Voltage Rating - AC 600V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3.7 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Chassis Mount
Case / Package Rectangular Box
Size / Dimension 1.634" L x 0.787" W (41.50mm x 20.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Termination Screw Terminals
Lead Spacing 1.299" (33.00mm)
Applications DC Link, DC Filtering; Snubber
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1520813-C4BSNBX4100ZEFJ
Ultra Librarian 3D Model Ultra Librarian C4BSNBX4100ZEFJ CAD Model
