Same model may have multiple batches, images only for reference.

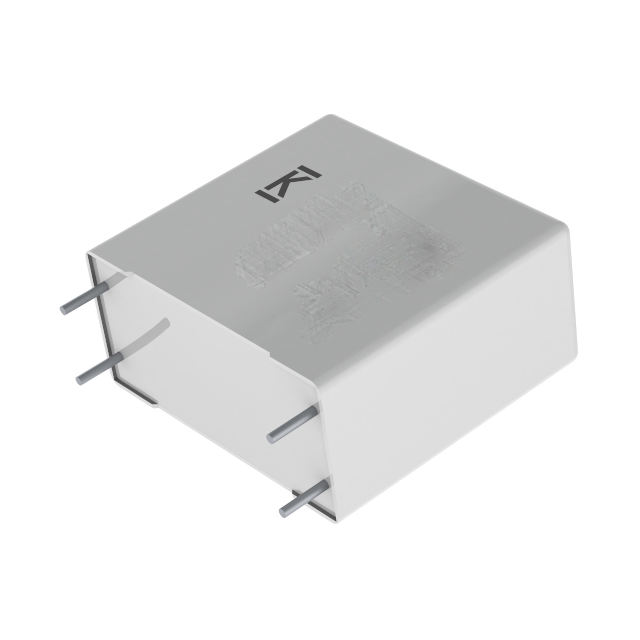

C4AQQLW5100A36J Real Image
Same model may have multiple batches, images only for reference.

C4AQQLW5100A36J

Part No C4AQQLW5100A36J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 10UF 5% 1.1KVDC RADIAL / 10 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
C4AQQLW5100A36J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series C4AQ
Package Bulk
Capacitance 10 µF
Tolerance ±5%
Voltage Rating - DC 1100V (1.1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 7.4 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Dimension 1.654" L x 1.378" W (42.00mm x 35.00mm)
Height - Seated (Max) 0.953" (24.20mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Base Product Number C4AQQL
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names 399-C4AQQLW5100A36J
Standard Package 60
Win Source Part Number 1038259-C4AQQLW5100A36J
Ultra Librarian 3D Model Ultra Librarian C4AQQLW5100A36J CAD Model

Description

The Kemet 1038259-C4AQQLW5100A36J is a film capacitor with a capacitance of 10 µF and a voltage rating of 1100V (1.1kV).

  • Tolerance: ±5%
  • Height: 0.953" (24.20mm)
  • Package: radial-4 leads
  • Mounting Style: through-hole
  • Applications: automotive and DC filtering
  • ESR (Equivalent Series Resistance): Low
