Same model may have multiple batches, images only for reference.

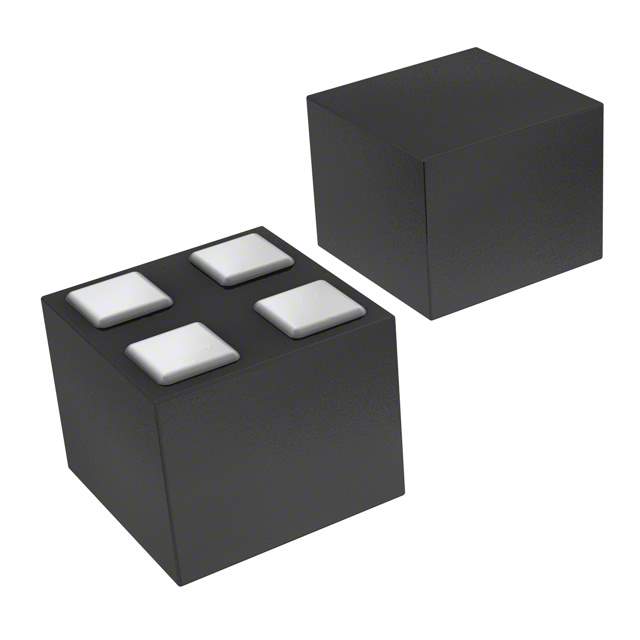

BGF120AE6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BGF120AE6327XTSA1

Part No BGF120AE6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 5.3VWM 31VC TSLP-4-8
Datasheet
BGF120AE6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5.3V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 31V
Peak Pulse Current(Ippm) 30A (8/20μs)
Applications Ethernet, HDMI, RF Antenna
Capacitance @ Frequency 1.5pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Win Source Part Number 1023317-BGF120AE6327XTSA1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian BGF120AE6327XTSA1 CAD Model

Description

The Infineon Technologies BGF120AE6327XTSA1 is a Zener diode that is designed for use in circuit protection applications such as Ethernet, HDMI, and RF antenna.

  • Application: circuit protection (Ethernet, HDMI, RF antenna)
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 31V
  • Peak Pulse Current: 30A (8/20μs)
  • Capacitance: 1.5pF @ 1MHz
  • Popularity: medium
  • Supply and Demand: balanced
