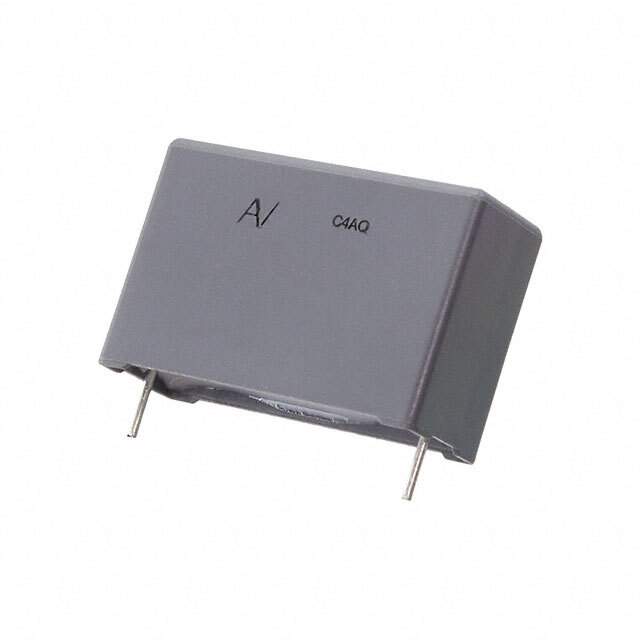

C4AQIBU4650M18J Real Image
Same model may have multiple batches, images only for reference.

C4AQIBU4650M18J

Part No C4AQIBU4650M18J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 6.5UF 5% 800VDC RADIAL / 6.5 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
Datasheet
C4AQIBU4650M18J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ-M
Package Bulk
Capacitance 6.5 µF
Tolerance ±5%
Voltage Rating - DC 800V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 8.7 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.654" L x 1.693" W (42.00mm x 43.00mm)
Height - Seated (Max) 1.189" (30.20mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Features Low ESL
Base Product Number C4AQIB
Standard Package 88
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1340232-C4AQIBU4650M18J
Ultra Librarian 3D Model Ultra Librarian C4AQIBU4650M18J CAD Model

Description

The KEMET C4AQ-M series film capacitor is a reliable and high-quality capacitor that is ideal for use in a range of automotive and DC filtering applications.

  • Capacitance: 6.5 µF
  • Tolerance: ±5%
  • Voltage Rating: 800V
  • Mounting Type: Radial
  • Height - Seated (Max): 1.189" (30.20mm)
  • Lead Spacing: 1.476" (37.50mm)
  • ESR (Equivalent Series Resistance): 8.7 mOhms
  • Dielectric Material: Polypropylene (PP) Metallized
