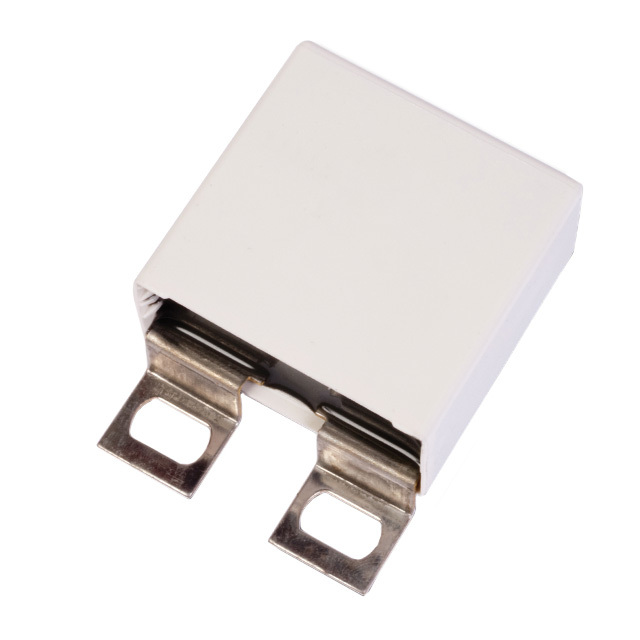

Same model may have multiple batches, images only for reference.
C4AEQBW5200A3MJ Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

C4AEQBW5200A3MJ

Part No C4AEQBW5200A3MJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 20UF 5% 1.1KVDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 20 µF
Tolerance ±5%
Voltage Rating - DC 1100V (1.1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 6.5 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Case / Package Radial - 4 Leads
Size / Dimension 2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max) 1.783" (45.30mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1520790-C4AEQBW5200A3MJ
Ultra Librarian 3D Model Ultra Librarian C4AEQBW5200A3MJ CAD Model
