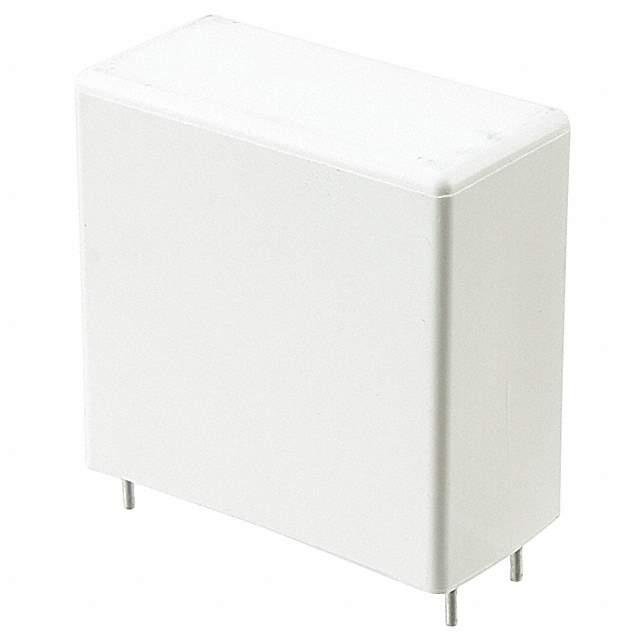

Same model may have multiple batches, images only for reference.

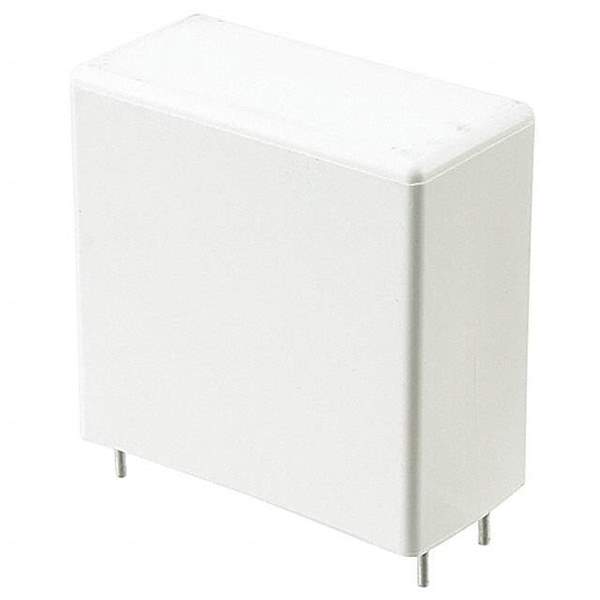

C4AEOBW5120A3FJ Real Image
Same model may have multiple batches, images only for reference.

C4AEOBW5120A3FJ

Part No C4AEOBW5120A3FJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 12UF 5% 900VDC RADIAL / 12 µF Film Capacitor 900V Polypropylene (PP), Metallized Radial
Datasheet
C4AEOBW5120A3FJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Manufacturer Kemet
Packaging Bulk
Capacitance 12 µF
Tolerance ±5%
Voltage Rating - DC 900V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 6.4 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Through Hole
Case / Package Radial
Size / Dimension 1.634" L x 0.787" W (41.50mm x 20.00mm)
Height - Seated (Max) 1.583" (40.20mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching
Base Product Number C4AEOB
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Part Number 399-6231,4AEOBW5120A3FJ
Standard Package 58
Win Source Part Number 1331353-C4AEOBW5120A3FJ
Ultra Librarian 3D Model Ultra Librarian C4AEOBW5120A3FJ CAD Model

Description

The Kemet C4AEOBW5120A3FJ is a film capacitor designed for DC link, DC filtering, high frequency, and switching applications.

  • Capacitance: 12 µF
  • Voltage Rating: 900V DC
  • Equivalent Series Resistance (ESR): 6.4 mOhms
  • Dielectric Material: Polypropylene (PP) and Metallized
  • Mounting Type: Through-Hole
  • Size: 1.634" L x 0.787" W (41.50mm x 20.00mm)
  • Lead Spacing: 1.476" (37.50mm)
  • Operating Temperature Range: -40°C ~ 85°C
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
