Same model may have multiple batches, images only for reference.

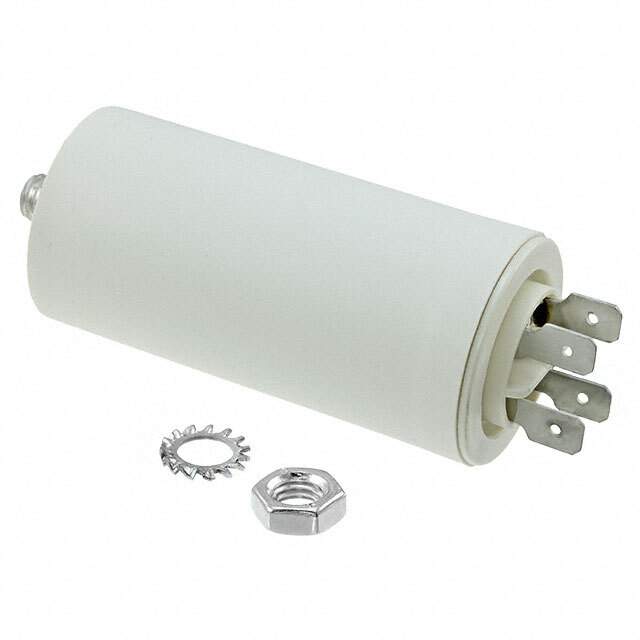

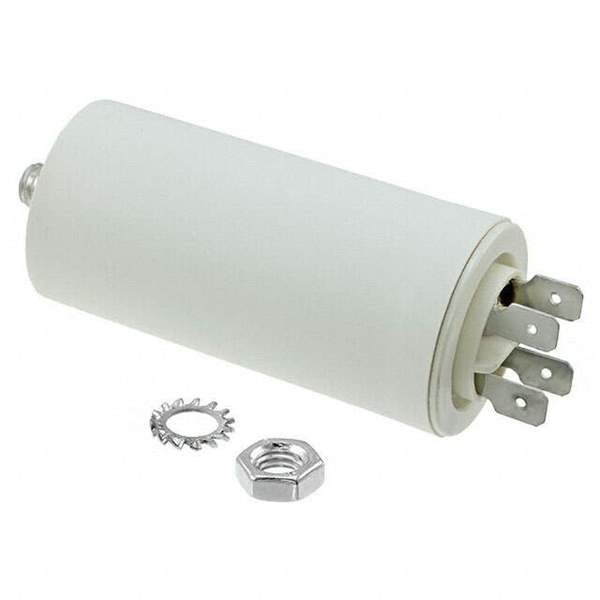

C276CC34630AA0J Real Image
Same model may have multiple batches, images only for reference.

C276CC34630AA0J

Part No C276CC34630AA0J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 6.3UF 5% 470VAC RADIAL / 6.3 µF Film Capacitor 470V Polypropylene (PP) Radial, Can
Datasheet
C276CC34630AA0J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series C276
Package Bulk
Capacitance 6.3 µF
Tolerance ±5%
Voltage Rating - AC 470V
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Chassis, Stud Mount
Package / Case Radial, Can
Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 2.303" (58.50mm)
Termination Quick Connect - 0.250" (6.3mm)
Lead Spacing 0.528" (13.40mm)
Applications Motor Run; Motor Start
Base Product Number C276CC
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Standard Package 110
Win Source Part Number 1052333-C276CC34630AA0J
Ultra Librarian 3D Model Ultra Librarian C276CC34630AA0J CAD Model

Description

The KEMET C276CC34630AA0J is a radial, can film capacitor with quick connect termination of 0.250 inches (6.3mm).

  • Capacitance: 6.3 µF
  • Tolerance: ±5%
  • Voltage Rating (AC): 470V
  • Dielectric Material: Polypropylene (PP)
  • Lead Spacing: 0.528 inches (13.40mm)
  • Operating Temperature Range: -25°C to 85°C
  • Dimension: 1.181 inches diameter (30.00mm)
  • Height Seated (Max): 2.303 inches (58.50mm)
  • Applications: Motor run and motor start applications
