Same model may have multiple batches, images only for reference.

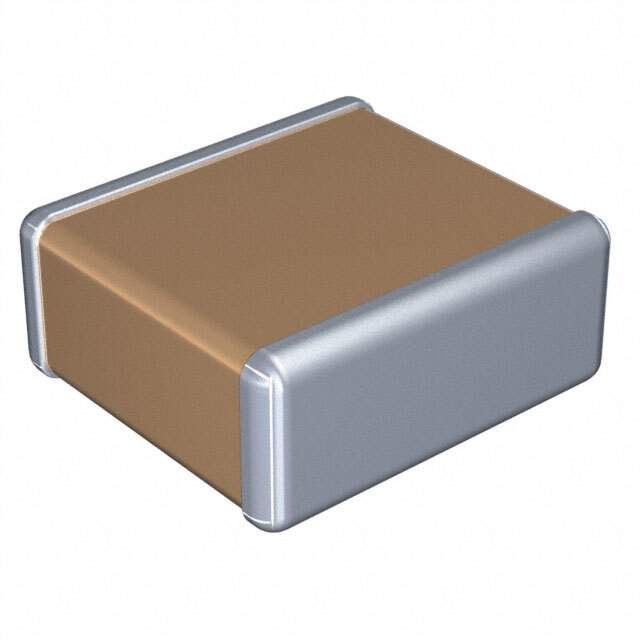

C2225C683KFRAC7800 Real Image
Same model may have multiple batches, images only for reference.

C2225C683KFRAC7800

Part No C2225C683KFRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 0.068UF 1.5KV X7R 2225 / 0.068 µF ±10% 1500V (1.5kV) Ceramic Capacitor X7R 2225 (5763 Metric)
Datasheet
C2225C683KFRAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KEMET
Series SMD Comm X7R HV
Package Tape & Reel
Capacitance 0.068 µF
Tolerance ±10%
Voltage - Rated 1500V (1.5kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 2225 (5763 Metric)
Dimension 0.220" L x 0.252" W (5.60mm x 6.40mm)
Thickness (Max) 0.106" (2.70mm)
Base Product Number C2225C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 399-C2225C683KFRAC7800TR,C2225C683KFRAC,C2225C683KFRACTU,399-C2225C683KFRAC7800CT,399-10505-2,399-10505-2-ND,399-10505-1,399-C2225C683KFRAC7800DKR,399-10505-6-ND,399-10505-1-ND,339-C2225C683KFRAC7800CT,C2225C683KFRAC7800,399-10505-6,339-C2225C683KFRAC7800DKR
Standard Package 500
Win Source Part Number 1178053-C2225C683KFRAC7800
Ultra Librarian 3D Model Ultra Librarian C2225C683KFRAC7800 CAD Model

Description

The SMD Comm X7R HV capacitor by KEMET is a high-quality electronic component that is designed to provide reliable performance in a wide range of electronic applications.

  • Capacitance: 0.068 µF
  • Voltage Rating: 1500V
  • Features: Low ESL, High Voltage
  • Suitability: High-Power Applications
  • Materials: High-Quality
  • Performance: Reliable
