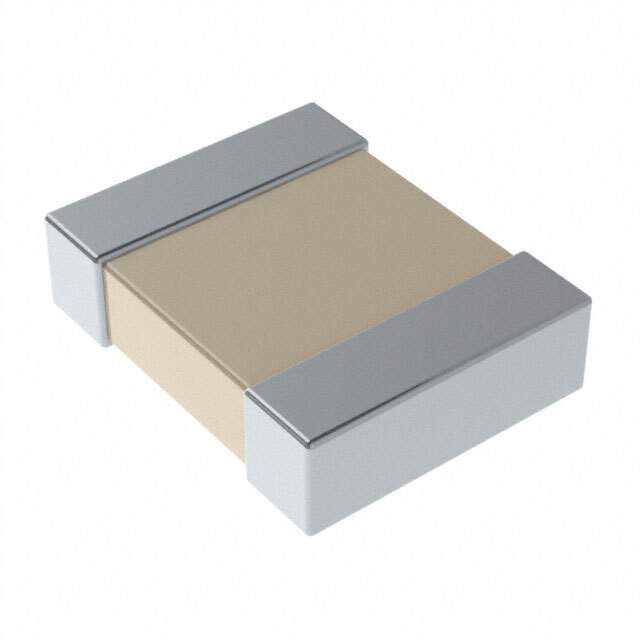

The C1210V823KBRACTU is a surface-mount multilayer ceramic capacitor (MLCC) manufactured by Kemet. It is designed for a wide range of applications requiring stable and reliable capacitive performance.

Applications

• Decoupling capacitors in power supplies
• Bypass capacitors in digital circuits
• Filtering capacitors in analog circuits
• Snubber circuits
• Resonant circuits

Features

• High capacitance value: 0.082 μF (82 nF)
• Voltage rating: 630 VDC
• Temperature coefficient: X7R
• Case size: 1210 (3225 Metric)
• Surface mount technology (SMT)
• RoHS compliant

Benefits

• Provides stable capacitance over a wide temperature range (-55°C to +125°C) due to its X7R dielectric.
• Offers high voltage withstanding capability, ensuring reliability in high-voltage applications.
• Reduces noise and voltage ripple in power supplies and digital circuits.
• Simplifies circuit design and assembly due to its surface mount package.
• Complies with environmental regulations, making it suitable for environmentally conscious designs.

Additional Details

The X7R dielectric offers a capacitance variation of ±15% from -55°C to +125°C. The 1210 case size provides a good balance between capacitance value and board space. The capacitor is constructed with a robust ceramic material, ensuring long-term reliability. It is commonly used in industrial, automotive, and telecommunications applications. Its high voltage rating and stable performance make it suitable for demanding applications.

The C1210V823KBRACTU features nickel barrier termination and tin plating. This construction improves solderability and prevents leaching during the soldering process. It comes in tape and reel packaging for automated assembly.
