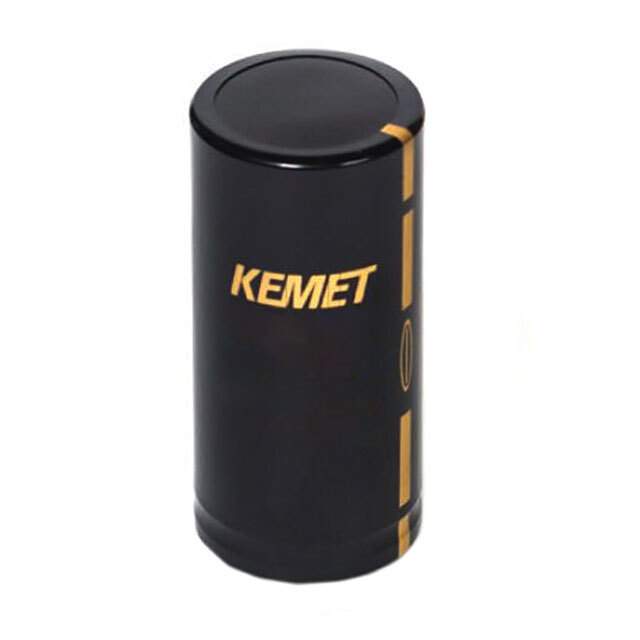

ALC10A331EE550 Real Image
Same model may have multiple batches, images only for reference.

ALC10A331EE550

Part No ALC10A331EE550
Manufacturer Kemet
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 550V SNAP / 330 µF 550 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1.056Ohm @ 100Hz 18000 Hrs @ 85°C
Datasheet
ALC10A331EE550 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr KEMET
Series ALC10
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 550 V
ESR (Equivalent Series Resistance) 1.056Ohm @ 100Hz
Lifetime @ Temp. 18000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.4 A @ 100 Hz
Ripple Current @ High Frequency 3.9 A @ 10 kHz
Impedance 920 mOhms
Lead Spacing 0.394" (10.00mm)
Dimension 1.575" Dia (40.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Base Product Number ALC10A
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0055
Other Names 399-12017,A521HG331M550A
Standard Package 25
Win Source Part Number 1044099-ALC10A331EE550
Ultra Librarian 3D Model Ultra Librarian ALC10A331EE550 CAD Model

Description

The KEMET ALC10 series aluminum electrolytic capacitor is a general-purpose capacitor designed for use in a variety of applications, manufactured by KEMET.

  • Capacitance: 330 µF
  • Voltage Rating: 550V
  • Package: Radial, Can-Snap-In
  • Lead Spacing: 0.394 inches (10.00mm)
  • Impedance: 920 mOhms
  • ESR (100Hz): 1.056 Ohm
  • Operating Temperature: -40°C to 85°C
  • Lifetime @ 85°C: 18,000 hours
  • Standard Package: 25
  • Height: 1.850 inches (47.00mm)
