Same model may have multiple batches, images only for reference.

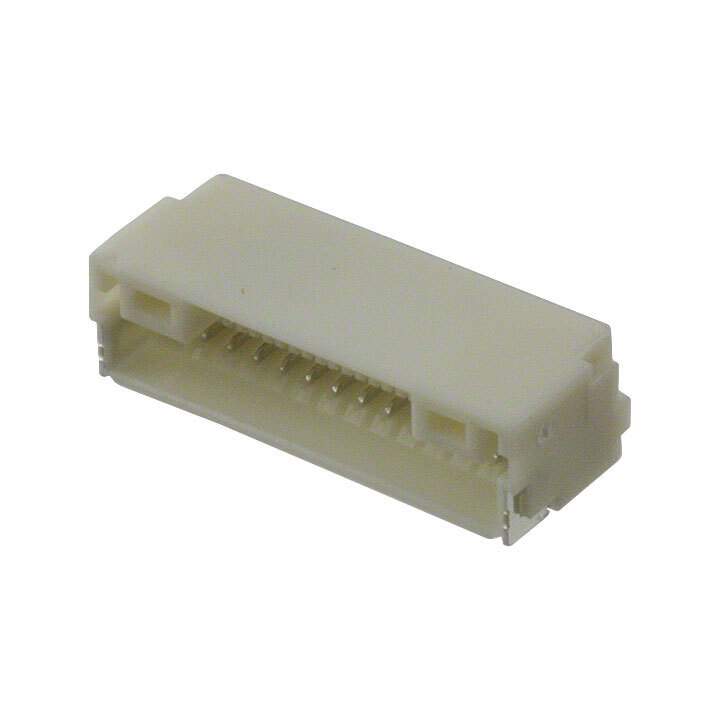

SM14B-NSHSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM14B-NSHSS-TB(LF)(SN)

Part No SM14B-NSHSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 14POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount, Right Angle 14 position 0.039" (1.00mm)
Manufacturer JST Sales America Inc.
Series NSH
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name SM14B-NS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SM14B-NSHSS-TB (LF)(SN), SM14BNSHSSTBLFSN, 455-2765-6, 455-2765-2, 455-2765-1
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934051-SM14B-NSHSS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM14B-NSHSS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 934051-SM14B-NSHSS-TB(LF)(SN) is a connector header designed for surface mount, right angle installation.

  • Positions: 14
  • Pitch: 0.039” (1.00mm)
  • Mounting: Surface Mount, Right Angle
  • Series: NSH
  • Operating Temperature: -25°C to 85°C
  • Package: Reel-TR
  • Pieces per Package: 1500
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Other part numbers: SM14B-NSHSS-TB (LF)(SN), SM14BNSHSSTBLFSN, 455-2765-6, 455-2765-2, 455-2765-1
