SM14B-GHS-TB(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

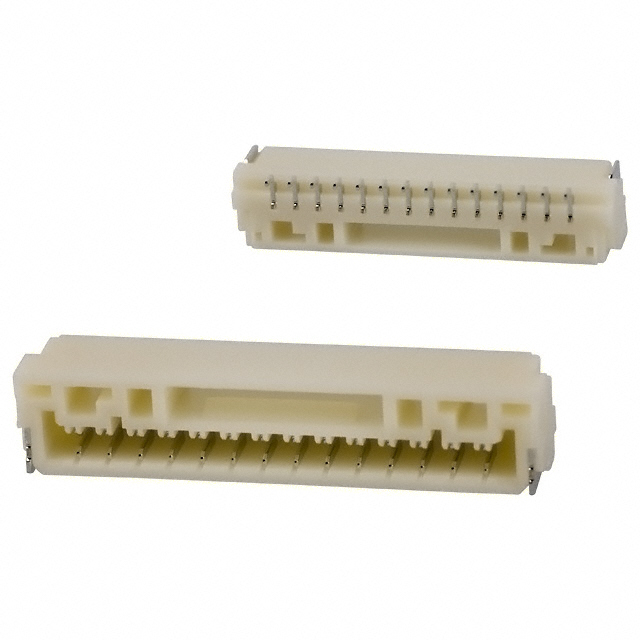

SM14B-GHS-TB(LF)(SN)

Part No SM14B-GHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH SIDE 14POS 1.25MM
Datasheet
SM14B-GHS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 14
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.167" (4.25mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 4.35mm
Win Source Part Number 1096904-SM14B-GHS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM14B-GHS-TB(LF)(SN) CAD Model

Description

The 1096904-SM14B-GHS-TB(LF)(SN) is a 14-position header connector with solder retention features from JST Sales America Inc..

  • Shrouded, 4-wall connector with a board to cable/wire style and a surface mount, right angle mounting
  • Connector type: outer shroud contact
  • All positions are loaded
  • Voltage rating: 50V
  • Current rating: 1A
  • Material flammability rating: UL94 V-0
  • Contact finish for mating and post: tin
  • Insulation material: polyamide (PA9T), nylon 9T
  • Insulation color: natural
  • Temperature range for operating: -25°C to 85°C
  • Component category: connectors and interconnects
  • Medium popularity with a balanced supply and demand status
