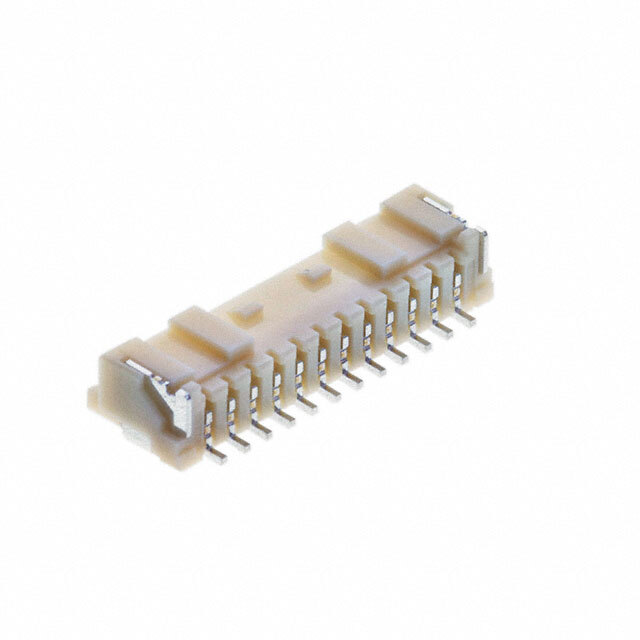

SM12B-PASS-TBT

Name: SM12B-PASS-TBT
Brand: JST Sales America Inc.
SKU: 1478097
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SM12B-PASS-TBT
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	Connector Header Surface Mount, Right Angle 12 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	JST Sales America Inc.
Series	PA
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	12
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.224" (5.69mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	SM12B-PA
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1478097-SM12B-PASS-TBT
Ultra Librarian 3D Model	Ultra Librarian SM12B-PASS-TBT CAD Model
