Same model may have multiple batches, images only for reference.

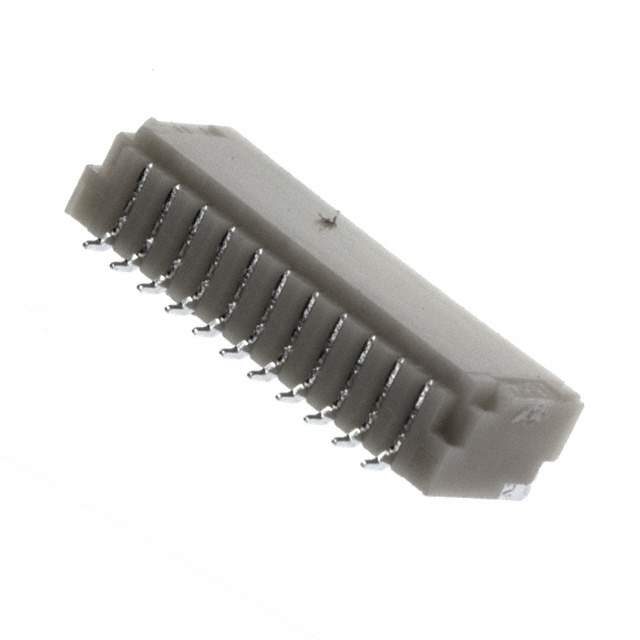

SM11B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM11B-SRSS-TB(LF)(SN)

Part No SM11B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADR SH 11POS SIDE 1MM TIN
Datasheet
SM11B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 11
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 2.95mm
Win Source Part Number 046965-SM11B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM11B-SRSS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. SM11B-SRSS-TB(LF)(SN) is an electronic component that is designed for use in connectors and interconnects.

  • Popularity: medium
  • Supply and Demand Status: balanced
  • Risk of Fake Products: moderate
  • Type: surface-mount header connector
  • Positions: 11
  • Fastening Type: push-pull
  • Voltage Rating: 50V
  • Current Rating: 0.7A
  • Suitable for: board-to-cable/wire connections
