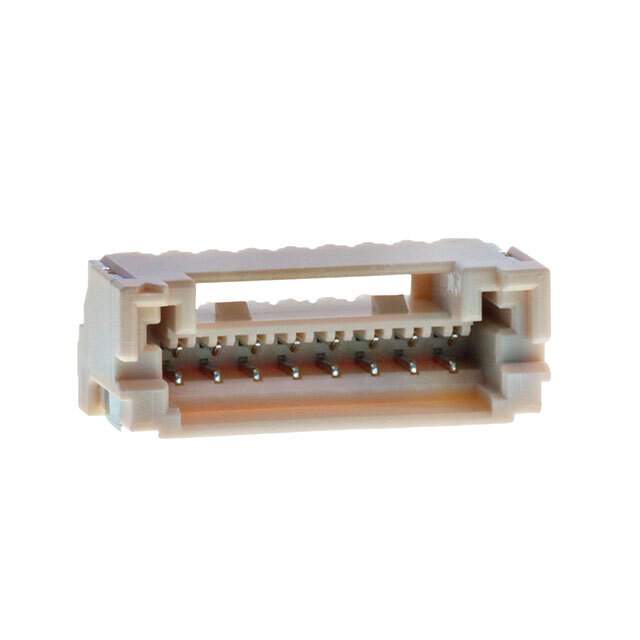

SM08B-ZESS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM08B-ZESS-TB(LF)(SN)

Part No SM08B-ZESS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 8POS 1.5MM / Connector Header Surface Mount, Right Angle 8 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.228" (5.80mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number SM08B-ZE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2401-1,455-2401-2,455-2401-6,SM08BZESSTBLFSN,SM08B-ZESS-TB (LF)(SN)
Standard Package 1,000
Win Source Part Number 1147462-SM08B-ZESS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM08B-ZESS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. ZE series connector is a rectangular connector header with male pins.

  • Positions: 8
  • Type: Shrouded-4 Wall
  • Mounting Type: Surface Mount, Right Angle
  • Pitch-Mating: 0.059" (1.50mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Fastening Type: Locking Ramp
  • Application: Board to Cable/Wire
  • Material Flammability Rating: UL94 V-0
  • Material: Polyamide (PA), Nylon
  • Operating Temperature: -25°C to 85°C
  • HTSUS Code: 8536.69.4040
