Same model may have multiple batches, images only for reference.

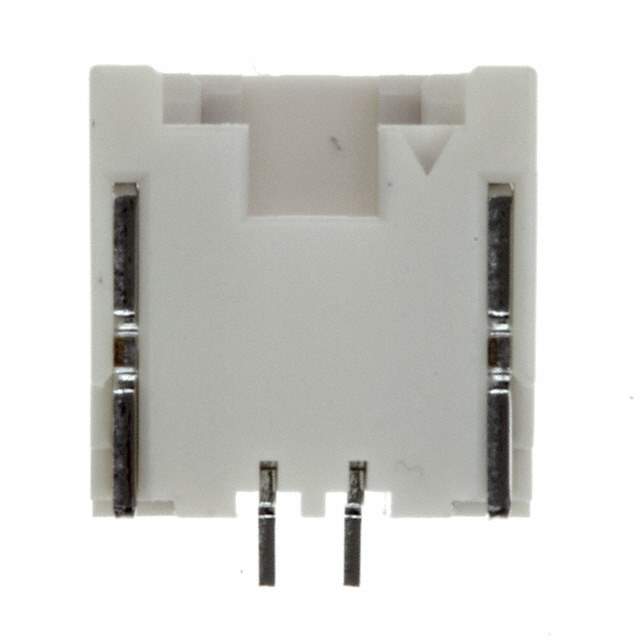

SM02B-ZESS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM02B-ZESS-TB(LF)(SN)

Part No SM02B-ZESS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount, Right Angle 2 position 0.059" (1.50mm)
Manufacturer JST Sales America Inc.
Series ZE
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name SM02B-ZE
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SM02B-ZESS-TB (LF)(SN), 455-2395-1, 455-2395-2, 455-2395-6, SM02BZESSTBLFSN, SM02B-ZESS-TB(LF)(SN)-
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934040-SM02B-ZESS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM02B-ZESS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. SM02B-ZESS-TB(LF)(SN) is a connector header with a surface mount and right-angle 2 positions of 0.059" (1.50mm).

  • Series: ZE
  • Family Name: SM02B-ZE
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 33 weeks
  • REACH: Unaffected
  • ECCN: EAR99
