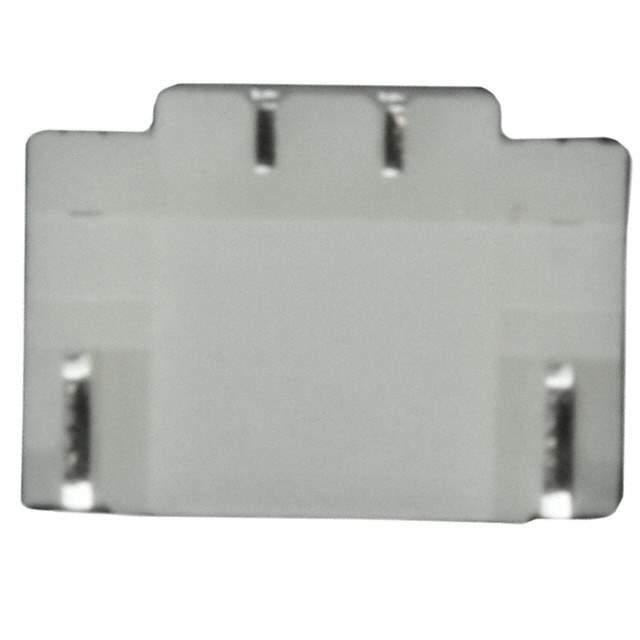

SM02B-SURS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM02B-SURS-TF(LF)(SN)

Part No SM02B-SURS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER 2POS .8MM TIN SIDE E
Datasheet
SM02B-SURS-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.031" (0.80mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.069" (1.75mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.2A, 0.5A
Voltage Rating 30V
Mated Stacking Heights 1.75mm
Win Source Part Number 116947-SM02B-SURS-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Automation & Process Control, Portable Devices, Industrial
Ultra Librarian 3D Model Ultra Librarian SM02B-SURS-TF(LF)(SN) CAD Model

Description

The SM02B-SURS-TF(LF)(SN) is a connector header that comes in a reel - TR packaging manufactured by JST Sales America Inc.

  • Positions: 2
  • Features: Solder retention with an outer shroud contact
  • Applications: Widely used in various electronic applications, from computers and computer peripherals to industrial systems.
  • Popularity: Medium popularity rate
  • Supply and Demand Status: Balanced
  • Mounting: Surface mount and right angle mounting
  • Insulation Color: Natural
  • Insulation Material: Polyamide (PA) nylon
  • Manufacturer: Reputable manufacturer in the electronics industry.
