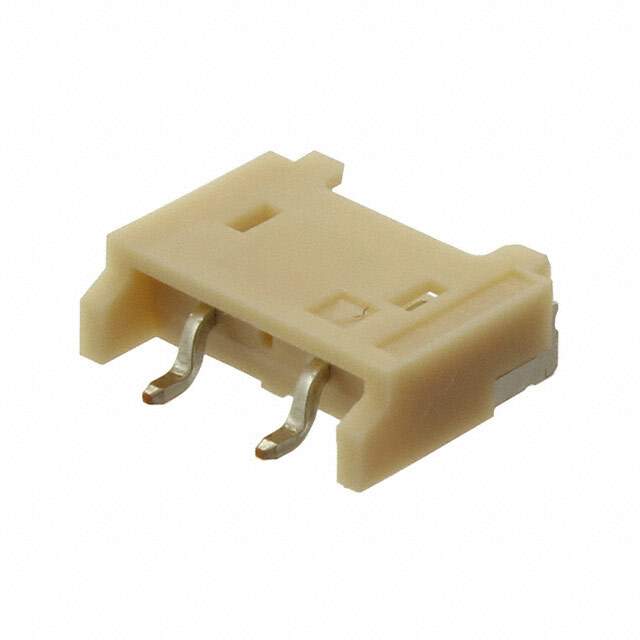

SM02(4.0)B-BHS-1-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM02(4.0)B-BHS-1-TB(LF)(SN)

Part No SM02(4.0)B-BHS-1-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 4MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.157" (4.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.126" (3.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 600V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759190-SM02(4.0)B-BHS-1-TB(LF)(SN)
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM02(4.0)B-BHS-1-TB(LF)(SN) CAD Model

Description

The SM02(4.0)B-BHS-1-TB(LF)(SN) is a header connector from JST Sales America Inc.

  • Mounting Style: Surface mount, right-angle
  • Positions: Two
  • Features: Solder retention
  • Applications: Board-to-cable/wire
  • Contact Type: Male pin
  • Contact Material: Copper alloy
  • Voltage Rating: 600V
  • Current Rating: 1A
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Manufacturer Pack Quantity: One
  • Supply and Demand Status: Balanced
