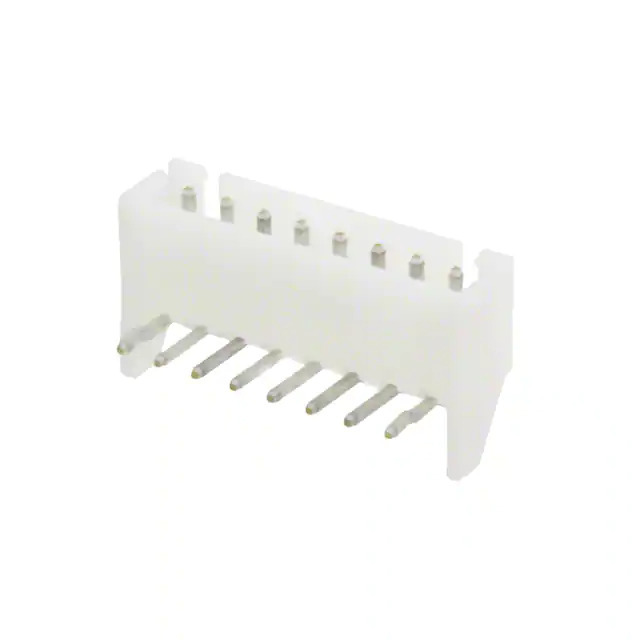

The 1362508-S8B-XH-A-1(LF)(SN) is a male header connector from JST Sales America Inc.'s XH series. It is designed for use in connectors, interconnects, and headers. The connector is through-hole and right angle mounted. It is a header connector with a pitch of 0.098" (2.50mm). The connector can accommodate 8 positions in 1 row. It has a current rating of 3A and a voltage rating of 250V. The contact material is brass and the contact finish is tin. The insulation material is polyamide (PA66), nylon 6/6. The connector has an HTSUS code of 8536.69.4040 and an ECCN of EAR99.

• Series: XH
• Product Category: Connectors, Interconnects, Headers
• Mounting Type: Through Hole, Right Angle
• Connector Type: Header
• Pitch: 0.098" (2.50mm)
• Number of Positions: 8
• Number of Rows: 1
• Current Rating: 3A
• Voltage Rating: 250V
• Contact Material: Brass
• Contact Finish: Tin
• Insulation Material: Polyamide (PA66), Nylon 6/6
• HTSUS Code: 8536.69.4040
• ECCN: EAR99
