Same model may have multiple batches, images only for reference.

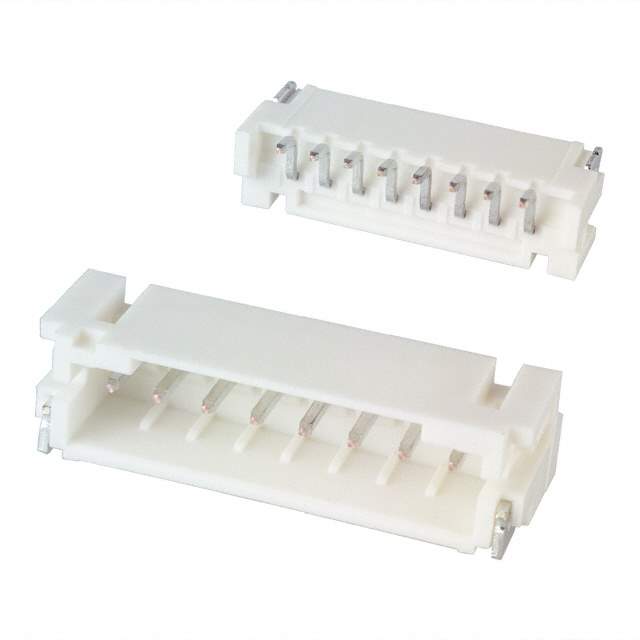

S8B-PH-SM3-TB Real Image
Same model may have multiple batches, images only for reference.

S8B-PH-SM3-TB

Part No S8B-PH-SM3-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH SIDE 8POS 2MM SMD / Conn Shrouded Header (4 Sides) HDR 8 POS 2mm Solder RA SMD T/R
Datasheet
S8B-PH-SM3-TB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Reel package
Part Status Obsolete(EOL)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA46), Nylon 4/6
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 5.5mm
Win Source Part Number 793764-S8B-PH-SM3-TB
Popularity Medium
Supply and Demand Status Limited
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian S8B-PH-SM3-TB CAD Model

Description

The 793764-S8B-PH-SM3-TB is an obsolete (EOL) header connector from JST Sales America Inc. with 8 positions.

  • Positions: 8
  • Retention: Solder
  • Locking: Detent Lock
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: Single
  • Pitch: 0.079 inches
  • Contact Material: Brass
  • Voltage Rating: 100V
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA46) and Nylon 4/6
  • Shrouded: 4 walls
  • Insulation Height: 0.217 inches
  • Operating Temperature: -25°C to 85°C
  • Current Rating: 2A
  • Packaging: Reel
  • Alternative Parts (Cross-Reference): 1734827-8, SWR201-NRPN-S08-HM-BG
  • Popularity: Medium
  • Supply and Demand Status: Limited
