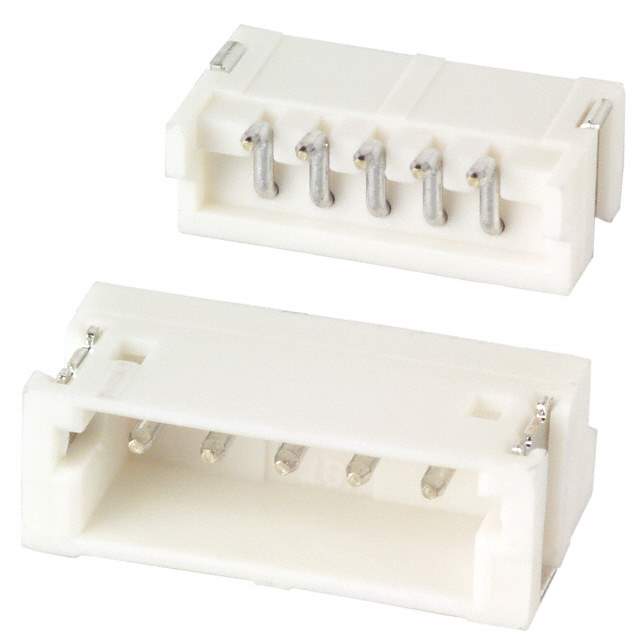

S5B-ZR-SM4A-TF(LF)(SN) JST Sales America Inc. S5B-ZR-SM4A-TF(LF)(SN) Real Image S5B-ZR-SM4A-TF(LF)(SN) real image
Same model may have multiple batches, images only for reference.
S5B-ZR-SM4A-TF(LF)(SN) JST Sales America Inc. S5B-ZR-SM4A-TF(LF)(SN) Real Image S5B-ZR-SM4A-TF(LF)(SN) real image
S5B-ZR-SM4A-TF(LF)(SN) JST Sales America Inc. S5B-ZR-SM4A-TF(LF)(SN) Real Image S5B-ZR-SM4A-TF(LF)(SN) real image
Same model may have multiple batches, images only for reference.

S5B-ZR-SM4A-TF(LF)(SN)

Part No S5B-ZR-SM4A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD T/R / CONN HEADER ZH SIDE 5POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.71mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 3.7mm
Win Source Part Number 101320-S5B-ZR-SM4A-TF(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name ZH
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian S5B-ZR-SM4A-TF(LF)(SN) CAD Model

Description

The 101320-S5B-ZR-SM4A-TF(LF)(SN) is a 5-position male pin header connector manufactured by JST Sales America Inc.

  • Popularity: high
  • Supply and demand: sufficient
  • Applications: board-to-cable/wire
  • Design: shrouded 4-wall
  • Voltage rating: 50V
  • Current rating: 1A
  • Contact finish: tin
  • Insulation material: polyamide (PA6T), nylon 6T
  • Temperature range: -25°C to 85°C
