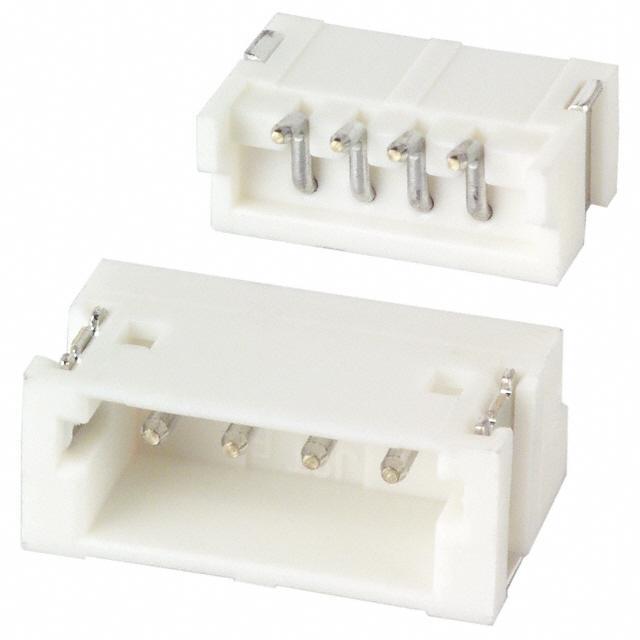

Part No S4B-ZR-SM4A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER ZH SIDE 4POS 1.5MM
Datasheet
S4B-ZR-SM4A-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.71mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 3.7mm
Win Source Part Number 101600-S4B-ZR-SM4A-TF(LF)(SN)
Family Name ZH
Introduction Date July 11, 2001
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian S4B-ZR-SM4A-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 101600-S4B-ZR-SM4A-TF(LF)(SN) header connector is a male pin type connector with a detent lock fastening feature.

  • Voltage Rating: 50V
  • Current Rating: 1A
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Material Flammability Rating: UL94 V-0
  • Applications: board to cable/wire style
  • Pitch-Mating: 0.059" (1.50mm)
  • Contact Finish-Mating: tin
  • Contact Finish-Post: tin
  • Insulation Height: 0.146" (3.71mm)
  • Temperature Range: -25°C to 85°C
  • Packaging: reel - TR
  • Popularity: high
  • Supply and Demand Status: sufficient
