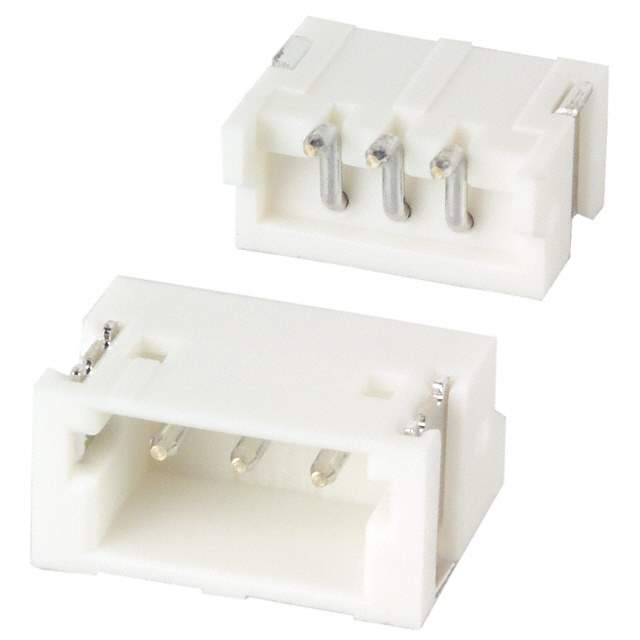

S3B-ZR-SM4A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S3B-ZR-SM4A-TF(LF)(SN)

Part No S3B-ZR-SM4A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER ZH SIDE 3POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.71mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 3.7mm
Win Source Part Number 127282-S3B-ZR-SM4A-TF(LF)(SN)
Family Name ZH
Introduction Date July 11, 2001
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian S3B-ZR-SM4A-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 127282-S3B-ZR-SM4A-TF(LF)(SN) is a header connector with 3 male pins.

  • Connector Type: Header
  • Number of Pins: 3 male pins
  • Fastening Type: Detent lock
  • Design: Shrouded 4 wall
  • Insulation Materials: Polyamide (PA6T) and nylon 6T
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Application: Board to cable/wire
  • Mounting Style: Surface mount, right-angle
  • Contact Finish: Tin
  • Material Flammability: UL94 V-0 rated
  • Mated Stacking Height: 3.7mm
  • Operating Temperature: -25°C to 85°C
  • Popularity: Commonly used connector with a high popularity
  • Supply and Demand Status: Limited
