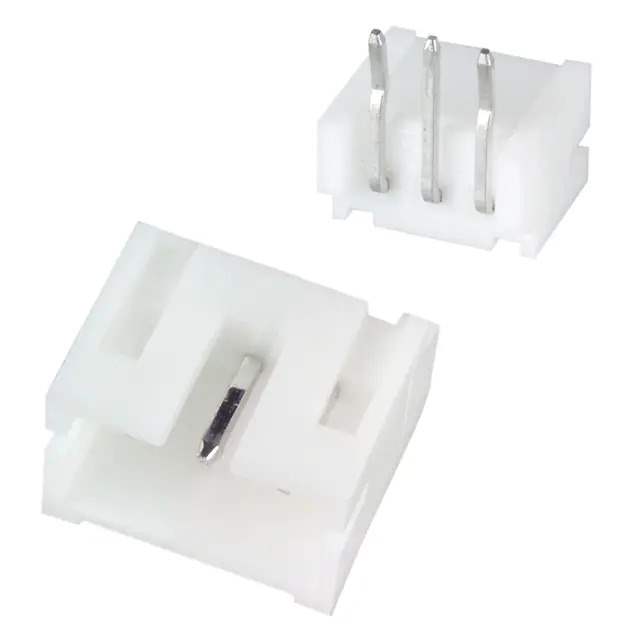

S3B-PH-K-S Real Image
Same model may have multiple batches, images only for reference.

S3B-PH-K-S

Part No S3B-PH-K-S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 2MM / Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)
Datasheet
S3B-PH-K-S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 748965-S3B-PH-K-S
Ultra Librarian 3D Model Ultra Librarian S3B-PH-K-S CAD Model

Description

The 748965-S3B-PH-K-S is a male pin header connector from the PH series of rectangular connectors.

  • Positions: 3
  • Termination: Press-fit and Solder
  • Material: Brass
  • Voltage Rating: 100V
  • Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Tin-Lead
  • Shrouded: 4 Walls
  • Mounting Type: Through Hole, Right Angle
  • Application: Board to Cable/Wire
  • Operating Temperature Range: -25°C to 85°C
  • Contact Shape: Square
  • Contact Length: 0.134" (3.40mm)
  • Status: Obsolete
  • Standard Package: 1,000 pcs
