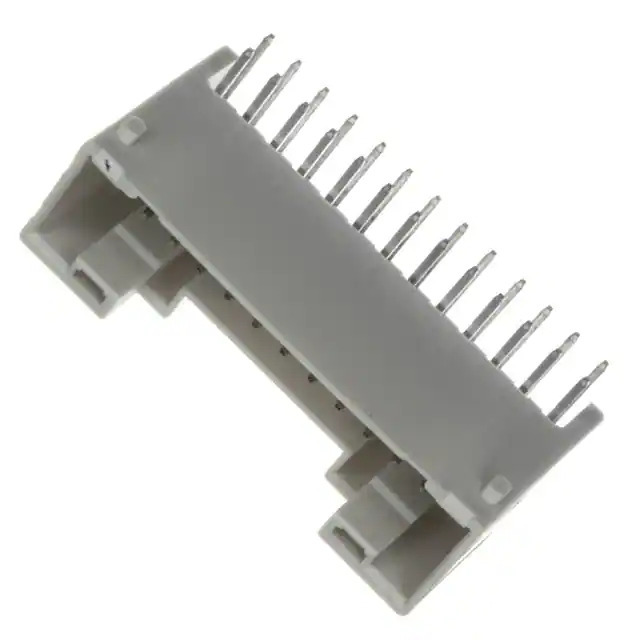

S26B-PUDSS-1(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

S26B-PUDSS-1(LF)(SN)

Part No S26B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 26POS 2MM / Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length -
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number S26B-PUD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362561-S26B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S26B-PUDSS-1(LF)(SN) CAD Model

Description

The 1362561-S26B-PUDSS-1(LF)(SN) is a male pin header connector manufactured by JST Sales America Inc.

  • Series: PUD
  • Category: Connectors and Interconnects
  • Operating Temperature: -25°C to 85°C
  • MSL Level: 1
  • Packaging: Tray
  • Status: Active
  • Base Product Number: S26B-PUD
  • Mounting Type: Through Hole, Right Angle
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
  • Current Rating: 3A
  • Style: Board to Cable/Wire
  • Connector Type: Header
  • Contact Gender: Male Pin
  • Pitch - Mating: 0.079" (2.00mm)
  • Number of Positions: 26
  • Number of Rows: 2
  • Row Spacing - Mating: 0.079" (2.00mm)
  • Shrouding: Shrouded with 4 Walls
  • Fastening Type: Latch Holder
  • Termination: Solder
  • Contact Length - Post: 0.118" (3.00mm)
  • Insulation Height: 0.335" (8.51mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Natural
  • Voltage Rating: 250V
