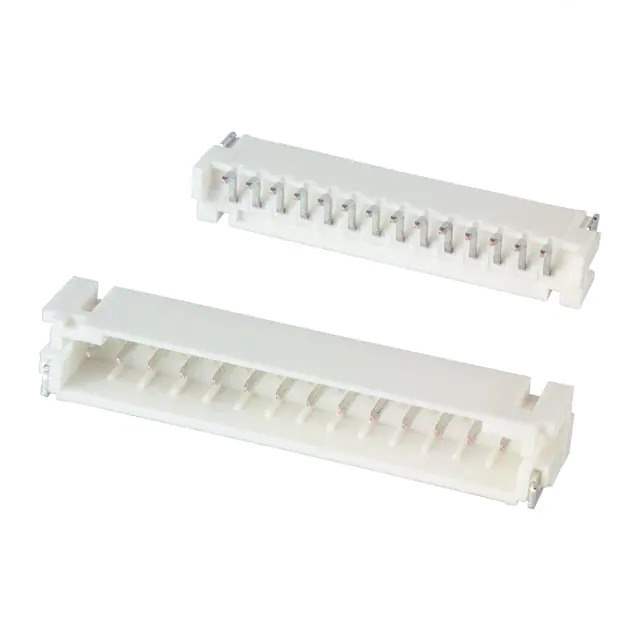

S14B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S14B-PH-SM4-TB(LF)(SN)

Part No S14B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 14POS 2MM / Connector Header Surface Mount, Right Angle 14 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number S14B-PH
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 748921-S14B-PH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S14B-PH-SM4-TB(LF)(SN) CAD Model

Description

The S14B-PH-SM4-TB(LF)(SN) is a 14-position male pin header connector from JST Sales America Inc.

  • Positions: 14
  • Pitch: 0.079" (2.00mm)
  • Mounting Type: Surface Mount, Right Angle
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Series: PH
  • Fastening Type: Detent Lock
  • Connector Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Temperature Range: -25°C to 85°C
  • Flammability Rating: UL94 V-0
  • Category: Rectangular Connectors - Headers, Male Pins
  • Packaging: Tape & Reel
