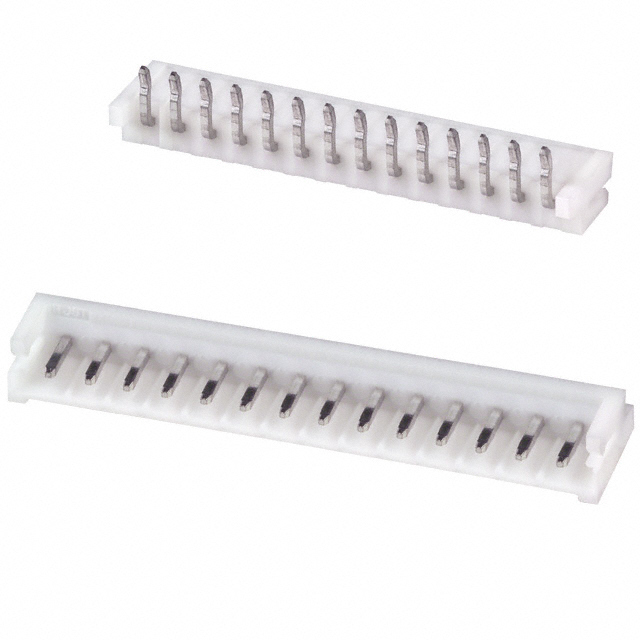

Same model may have multiple batches, images only for reference.

S14B-EH

Name: S14B-EH
Brand: JST Sales America Inc.
SKU: 1479134
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S14B-EH
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	Connector Header Through Hole, Right Angle 14 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	JST Sales America Inc.
Series	EH
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	14
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Latch Lock
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.165" (4.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S14B-EH
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1479134-S14B-EH
Ultra Librarian 3D Model	Ultra Librarian S14B-EH CAD Model
